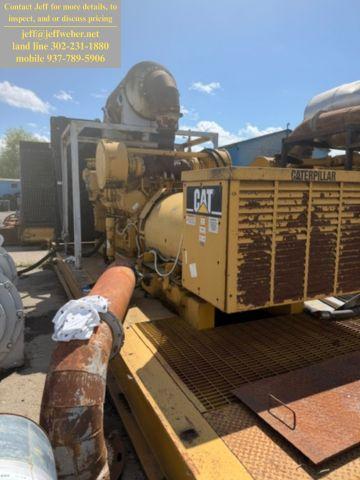

#1 Generator set Caterpillar 3512 DOM 2006 for sale

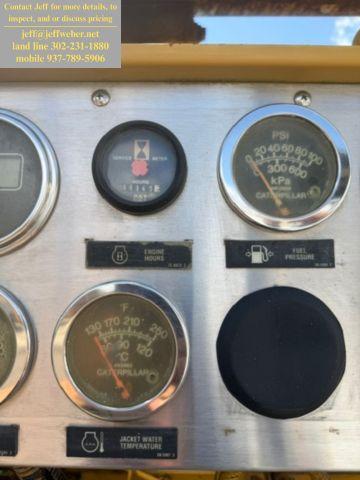

Working hours 11343

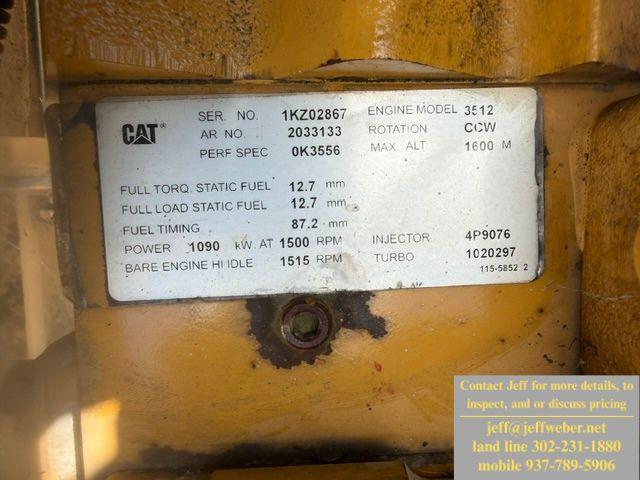

Engine model 3512 rotation CCW serial number 1KZ02867

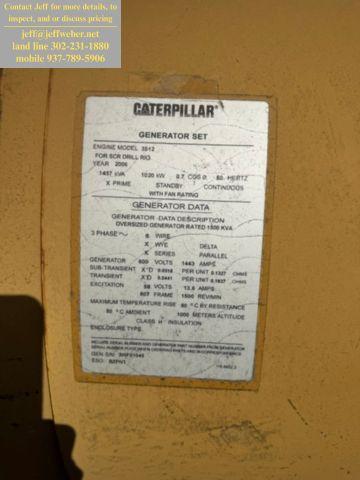

Generator 1500 Kva, 600 VOLT
General Information-Caterpillar 3512 genset for sale
Bore – mm (in) 170 (6.69)
Stroke – mm (in) 190 (7.48)
Displacement – L (in 3) 51.8 (3161.03)
Compression Ratio 13.5:1
Aspiration TA
Fuel System
Governor Type Woodward
Features Caterpillar 3512 genset for sale
Cat
® Diesel Engine
• Designed and optimized for low fuel consumption
• Reliable performance proven in thousands of applications worldwide
Generator Set Package
• Accepts 100% block load in one step and meets NFPA 110 loading requirements
• Conforms to ISO 8528-5 G3 load acceptance requirements
• Reliability verified through torsional vibration,
fuel consumption, oil consumption, transient performance, and endurance testing
Alternators
• Superior motor starting capability minimizes need for oversizing generator
• Designed to match performance and output characteristics of Cat diesel engines
Cooling System
• Cooling systems available to operate in ambient temperatures up to 50°C (122°F)
• Tested to ensure proper generator set cooling
EMCP 4 Control Panels
• User-friendly interface and navigation
• Scalable system to meet a wide range of installation requirements
• Expansion modules and site specific programming for specific customer requirements

Performance
• Frequency: 60 Hz

Gen set power rating with fan:
• Standby: 1100 ekW
• Mission Critical: 1100 ekW
• Prime: 1000 ekW
• Continuous: 890 ekW

Gen set power rating with fan @ 0.8 power factor:
• Standby: 1375 kVA
• Mission Critical: 1375 kVA
• Prime: 1250 kVA
• Continuous: 1113 kVA

Emissions: Low Fuel (all ratings)
Performance number:
• Standby: DM8224-02
• Mission Critical: EM2840-00
• Prime: DM8225-04
• Continuous: DM8226-02

Fuel Consumption
100% load with fan - L/hr (gal/hr):
• Standby: 294.1 (77.7)
• Mission Critical: 294.1 (77.7)
• Prime: 268.5 (70.9)
• Continuous: 235.3 (62.2)

75% load with fan - L/hr (gal/hr):
• Standby: 224.2 (59.2)
• Mission Critical: 224.2 (59.2)
• Prime: 205.1 (54.2)
• Continuous: 183.6 (48.5)

50% load with fan - L/hr (gal/hr):
• Standby: 160.9 (42.5)
• Mission Critical: 160.9 (42.5)
• Prime: 147.5 (39.0)
• Continuous: 133.2 (35.2)

25% load with fan - L/hr (gal/hr):
• Standby: 99.0 (26.1)
• Mission Critical: 99.0 (26.1)
• Prime: 92.2 (24.3)
• Continuous: 84.2 (22.2)

Cooling System
Radiator air flow restriction (system) - kPa (in. water):
• 0.12 (0.48) (all ratings)
Radiator air flow - m³/min (cfm):
• 1088 (38422) (all ratings)
Engine coolant capacity - L (gal):
• 156.8 (41.4) (all ratings)
Radiator coolant capacity - L (gal):
• 130.0 (34.3) (all ratings)
Total coolant capacity - L (gal):
• 286.8 (75.7) (all ratings)

Inlet Air
Combustion air inlet flow rate - m³/min (cfm):
• Standby: 92.3 (3259.0)
• Mission Critical: 92.3 (3259.0)
• Prime: 99.2 (3504.1)
• Continuous: 85.2 (3008.5)

Exhaust System
Exhaust stack gas temperature - °C (°F):
• Standby: 524.0 (975.2)
• Mission Critical: 524.0 (975.2)
• Prime: 470.0 (878.0)
• Continuous: 452.1 (845.8)

Exhaust gas flow rate - m³/min (cfm):
• Standby: 258.9 (9141.4)
• Mission Critical: 258.9 (9141.4)
• Prime: 253.9 (8963.8)
• Continuous: 215.7 (7616.5)

Exhaust system backpressure (maximum allowable) - kPa (in. water):
• 6.7 (27.0) (all ratings)

Heat Rejection
Heat rejection to jacket water - kW (Btu/min):
• Standby: 729 (41455)
• Mission Critical: 729 (41455)
• Prime: 654 (37196)
• Continuous: 580 (32984)

Heat rejection to exhaust (total) - kW (Btu/min):
• Standby: 1202 (68352)
• Mission Critical: 1202 (68352)
• Prime: 1072 (60962)
• Continuous: 933 (53058)

Heat rejection to aftercooler - kW (Btu/min):
• Standby: 134 (7619)
• Mission Critical: 134 (7619)
• Prime: 140 (7989)
• Continuous: 104 (5914)

Heat rejection to atmosphere from engine - kW (Btu/min):
• Standby: 122 (6938)
• Mission Critical: 122 (6938)
• Prime: 116 (6589)
• Continuous: 114 (6483)

Heat rejection from alternator - kW (Btu/min):
• Standby: 63 (3586)
• Mission Critical: 63 (3586)
• Prime: 55 (3131)
• Continuous: 48 (2732)

Emissions (Nominal)
NOx - mg/Nm³ (g/hp-h):
• Standby: 4083.4 (8.92)
• Mission Critical: 4083.4 (8.92)
• Prime: 4744.9 (9.39)
• Continuous: 4809.7 (9.40)

CO - mg/Nm³ (g/hp-h):
• Standby: 593.6 (1.30)
• Mission Critical: 593.6 (1.30)
• Prime: 469.4 (0.93)
• Continuous: 427.6 (0.84)

HC - mg/Nm³ (g/hp-h):
• Standby: 74.1 (1.16)
• Mission Critical: 74.1 (1.16)
• Prime: 140.4 (0.28)
• Continuous: 177.8 (0.35)

PM - mg/Nm³ (g/hp-h):
• Standby: 108.2 (0.24)
• Mission Critical: 108.2 (0.24)
• Prime: 71.9 (0.14)
• Continuous: 69.0 (0.13)

Emissions (Potential Site Variation)
NOx - mg/Nm³ (g/hp-h):
• Standby: 4900.1 (10.70)
• Mission Critical: 4900.1 (10.70)
• Prime: 5693.9 (11.27)
• Continuous: 5771.6 (11.29)

CO - mg/Nm³ (g/hp-h):
• Standby: 1068.4 (2.33)
• Mission Critical: 1068.4 (2.33)
• Prime: 844.9 (1.67)
• Continuous: 769.7 (1.50)

HC - mg/Nm³ (g/hp-h):
• Standby: 98.6 (0.22)
• Mission Critical: 98.6 (0.22)
• Prime: 186.7 (0.37)
• Continuous: 236.5 (0.46)

PM - mg/Nm³ (g/hp-h):
• Standby: 151.5 (0.33)
• Mission Critical: 151.5 (0.33)
• Prime: 100.7 (0.20)
• Continuous: 96.6 (0.19)

Contact Jeff for more details, to inspect, and or discuss pricing.
jeff@jeffweber.net
land line 302-231-1880
USA mobile-wahts ap 937-789-5906
