There are three major components of a degasser that must be present for efficient separation of gas from drilling mud
Superior Design
There are three major components of a degasser that must be present for efficient separation of gas from drilling mud. These are:
• Vacuum environment
• Increased leaf/baffle area
• High impact/turbulence of the fluid

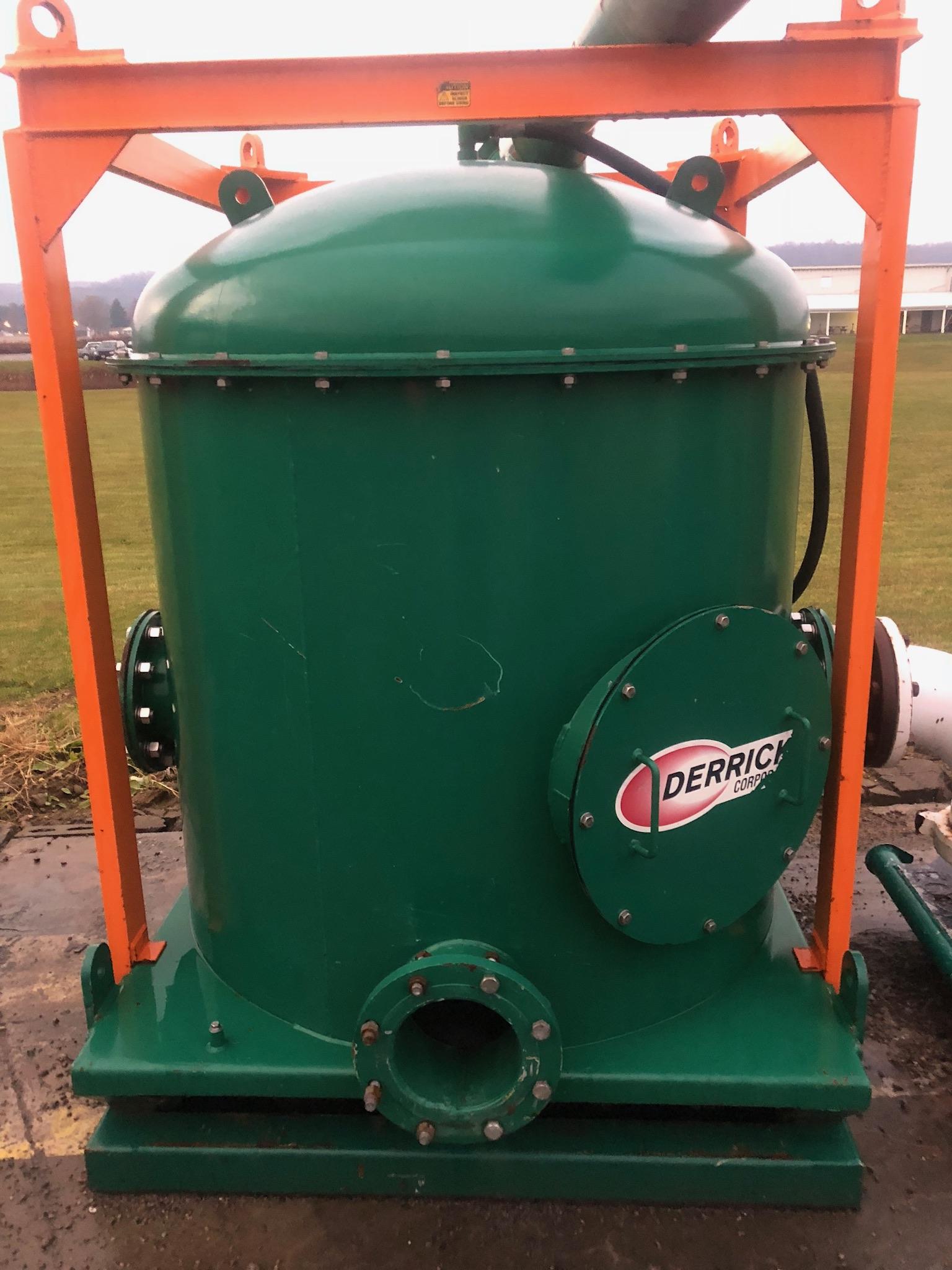

Derrick's Vacu-Flo degasser features all three. Designed with a more efficient vertical tank design than traditional horizontal degassers, the Vacu-Flo significantly increases gas/mud separation while experiencing no increase in vessel size, tank space requirements, unit weight, or reconfiguration of pit arrangement.
Its vacuum environment allows bubbles to surface from fluid more rapidly while increased surface area of the baffles (14,528 in^2) enables 1200 GPM of fluid to be processed.
Vacu-Flo Design

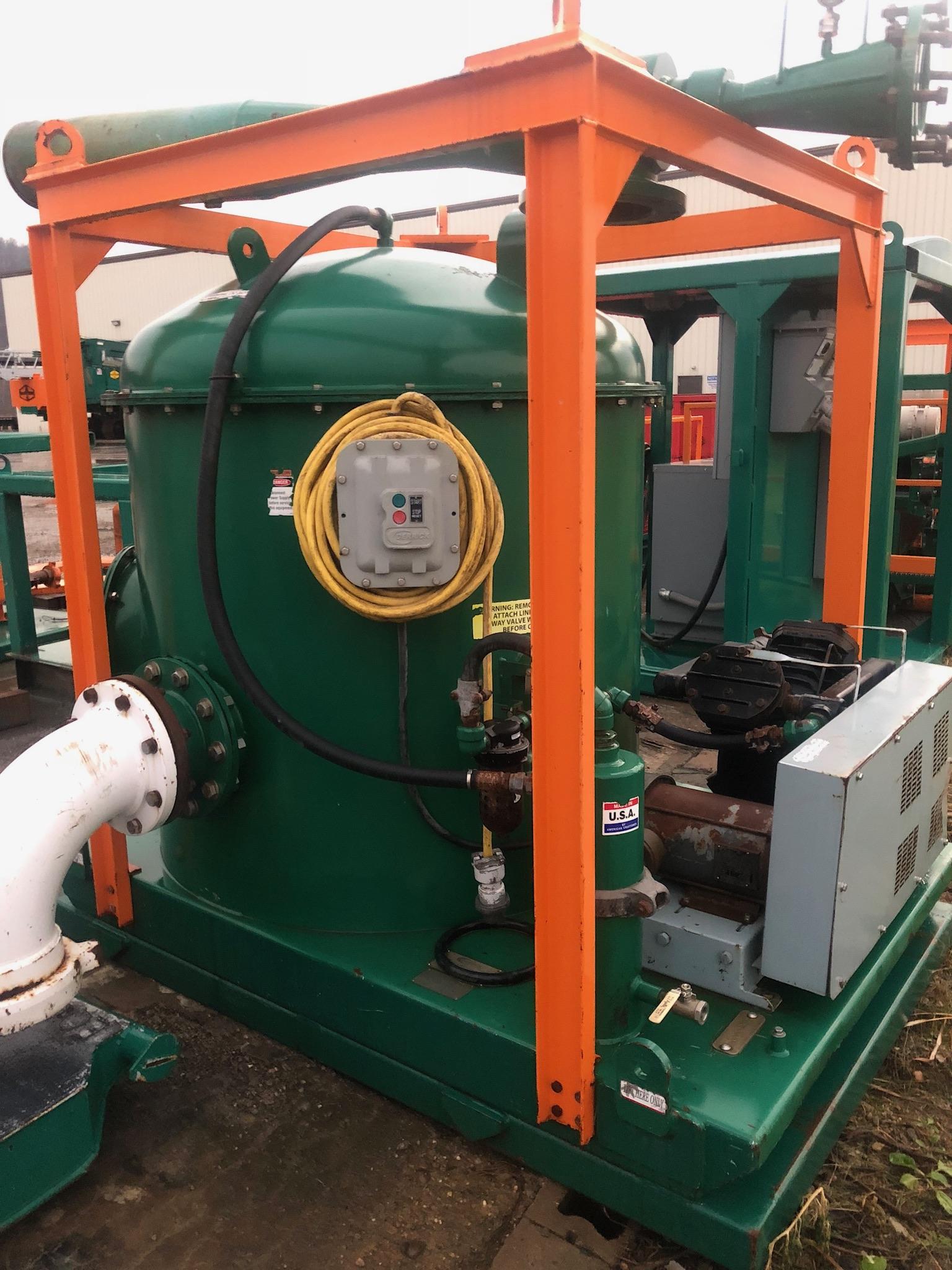

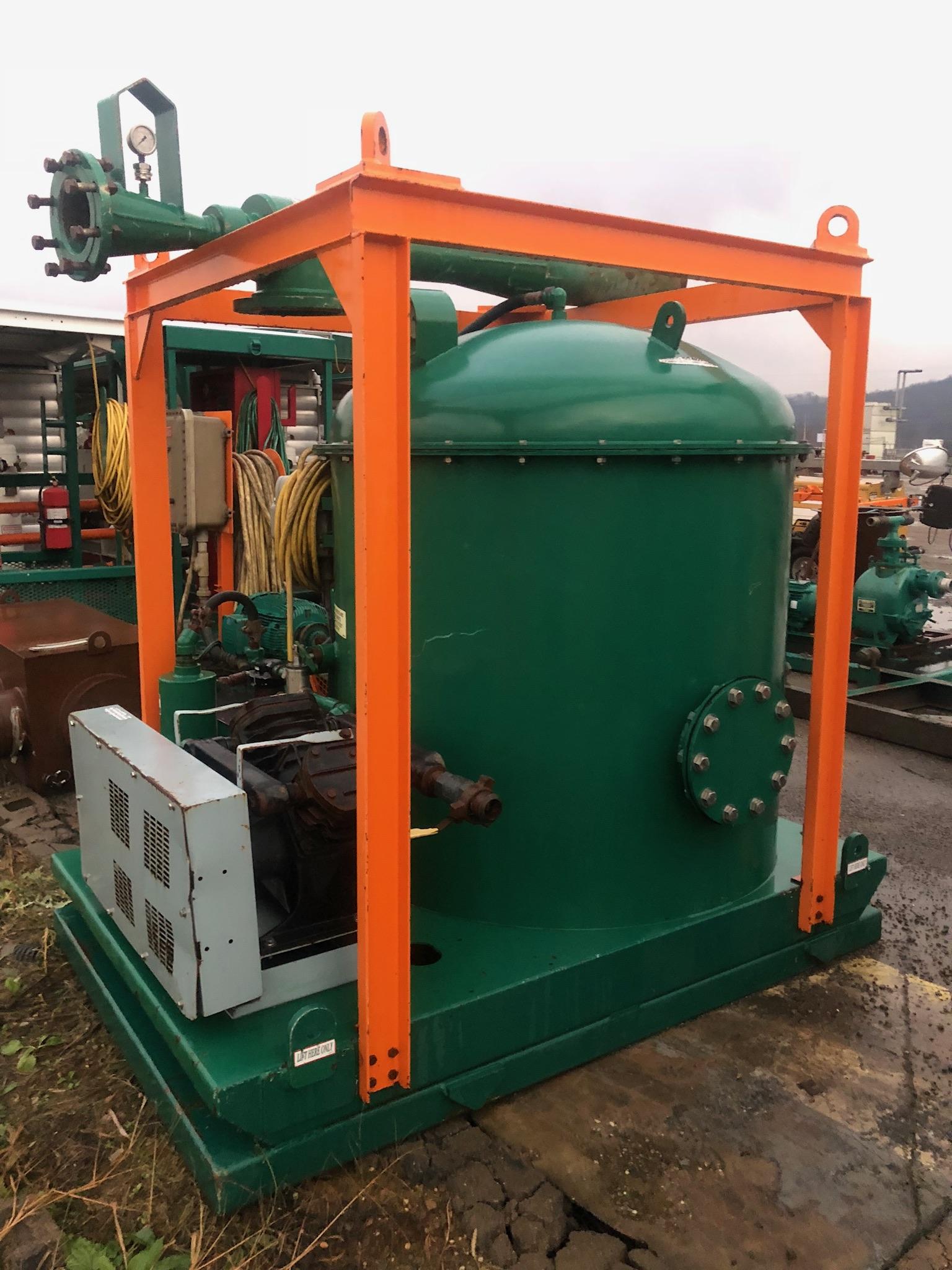

The Vacu-Flo degasser utilizes a 5 HP vacuum pump, capable of pulling 29"Hg, to lift mud into the degassing chamber where decreased pressure allows the gas bubbles to separate from the fluid more rapidly. Inside the chamber, unwanted formation gasses are removed and then transported by the vacuum pump into the circular ports. The vacuum increases as the mud level gets lower, thus allowing mud tank levels to be maintained without effecting flow rate. As a safety precaution, the vacuum is drawn from the top of the tank to prevent a gas pocket from forming.
Stacked leaf arrangement allows superior gas/liquid separation.
Vacuum pump eliminates remixing and inefficient cyclonic reseparations.
Increased Leaf/Baffle Area
The Vacu-Flo degasser features a stacked, corrugated fiberglass leaf arrangement with multiple feed ports to provide higher fluid impact and increased baffle area. This additional surface area allows for thinner layers of mud dispersion and more liquid to be spread across the baffle, resulting in increased gas separation. The unique baffle design prevents any obstruction of the baffle area by drill solids or other foreign objects.
Increased Fluid Turbulence
Inside the degassing chamber mud is forced through circular ports at a high velocity before being impacted against the baffle. The resulting forceful impact combined with increased turbulence significantly aids in separating gas bubbles from the drilling mud.
Simple Operation
The unit is started by closing two motor switches which energize the educator supply pump and the vacuum pump. Flow rater and vacuums are controlled automatically.
Stable Flow Rates
The Vacu-Flo degasser accelerates mud into the degasser entirely by vacuum. This prevents the need for pumps and impellers whose flow rates are severely affected by gas content in the mud.
Flexibility of Rig-Up
The Vacu-Flo degasser does not have to be located directly above the suction compartment, thus allowing the unit to be placed elsewhere on the rig.
Two Model Sizes
The Vacu-Flo degasser is available in a Vacu-Flo 500 GPM having 5,680 in^2 of leaf area and a Vacu-Flo 1200 GPM with 14,528 in^2 which is advantageous when operating at higher flow rates.
