Selling 1600hp Upetrom F200 EC drilling rig.
Information
Selling 1600hp Upetrom F200 EC drilling rig.

Listing ID: 1547
Title: Selling 1600hp Upetrom F200 EC drilling rig.
Model: 1600hp Upetrom F200 EC drilling rig
Price: price on request
Quantity: 1
Condition: stacked
Location: Eastern Europe
Date Posted: 2019-05-11 05:56:28
Contacts:

Email: jeff@jeffweber.net

phone USA: 302-231-1880

Skype: jeffreyweber

whatsapp: 937-789-5906

telegram: @jeffweberusa

Description

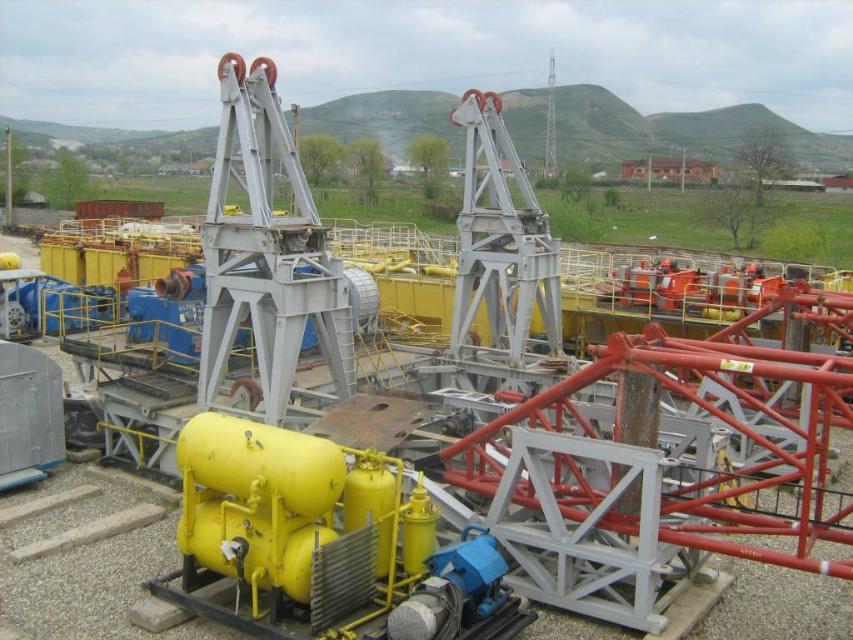

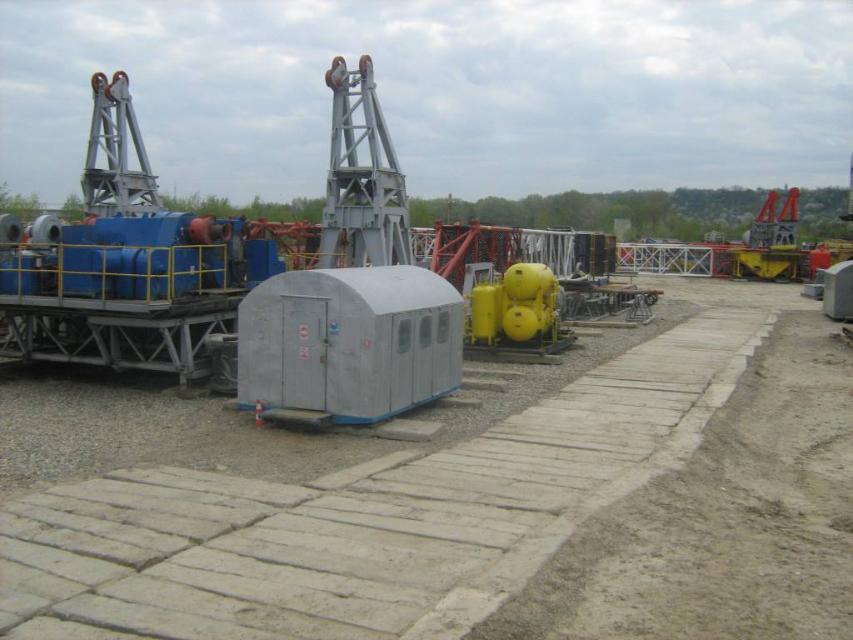

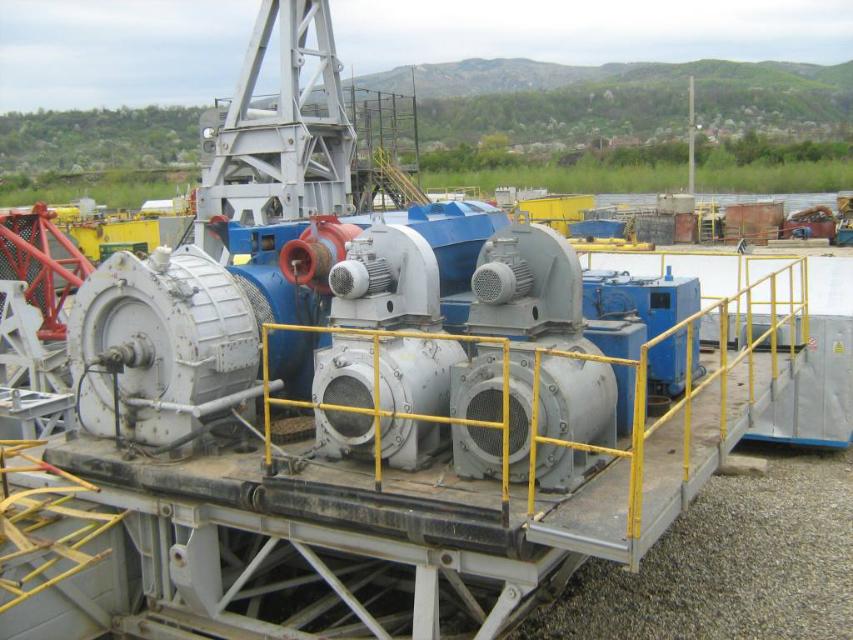

We send you in attachments several pictures taken to the oil rig that I own and which is for sale.

The oil rig is type F 200 EC, it was manufactured by Upetrom 1 Mai Ploiesti in 1990 and it was refurbished in 2006.

The oil rig is now stored in our warehouse in Eastern Europe. The pictures were taken before we shipped the oil rig to our warehouse.

Also, we have a stock of electrical (power transformers, AC electric motors, DC electric motors etc.) and mechanical(crown blocks, swivels, engines etc.) equipments which can be used as spare parts in the oilfield industry.

Note: since the refurbishment made in 2006 till now, this oil rig saw little action, it was used to drill only three wells between 2006 and 2010, due to the previous owner inability to secure drilling contracts for his company. Between 2010 and 2017 this oil rig was in conservation, assembled, in previous owner base. In march 2017 we purchased the oil rig, we dismantled it and we shipped it to our base in Eastern Europe.
P.S.: this oil rig is more resilient(performant) than a standard F 200 oil rig and can take over 200 tons hook load, because it has the following components:
- mast MA 260 type, made by Upetrom 1 Mai Ploiesti Romania (260 tons - maximum hook load, in working, on 10 lines);
- crown block GF 300 type, made by Upetrom 1 Mai Ploiesti, Romania ( 300 tons - maximum hook load);
- hook + travelling block 5-32-MC 300 type, made by Upetrom 1 Mai Ploiesti, Romania (300 tons - maximum hook load, 5 sheaves grooved for OD of 32 mm);
- swivel CH 320 type, made by Upetrom 1 Mai Ploiesti, Romania (320 tons - maximum static load capacity);
- rotary table MRL 275 type, made by Upetrom 1 mai Ploiesti, Romania(500 tons - maximum static load capacity).

- mud pump, 3 PN 1000L- EC type (driven by 1 piece of 800 kw power d.c. electric motor), made by Upetrom 1 Mai Ploiesti, Romania - 1 piece;


- Free height of the mast is 41.8 meters.
- The drawworks has 1600 hp input, powered by 2 x 850 kw d.c motor and one electromagnetic brake type FE 1400, romanian made by Upetrom 1 Mai Ploiesti.

- d.c. electric motor , type MCF, 850 kw power, made by Electroputere Craiova, Romania(air-cooled by 11 kw electric motor-fan) - 12 pieces

- d.c. electric motor, type MCF, 550 kw power, made by Electroputere Craiova, Romania(air-cooled by 11 kw electric motor-fan) - 2 pieces;

- a.c. electric motor with anti-explosion protection, 75 kw power, made in Romania - 9 pieces;

- a.c. electric motor with anti-explosion protection, 55 kw power, made in Romania - 3 pieces;

- a.c. electric motor with anti-explosion protection, 45 kw power, made in U.S.A. - 1 piece;

- a.c. electric motor with anti-explosion protection, 22 kw power, made in Romania - 3 pieces;

- a.c. electric motor with anti-explosion protection, 3 kw power, made in Romania - 1 piece;

- a.c. generator, 240 kVA power, made in Romania - 1 piece

- welding generator, made in Romania 1 piece;

- electrical power transformer, oil-cooled, type TTU-Al, 2000 kVA power, 20000 V/660 V, 50 Hz, made by Electroputere Craiova, Romania - 5 pieces;

- electrical power transformer, oil-cooled, type TTU-Cu, 1600 kVA power, 6000 V/660 V, 50 Hz, made by Electroputere Craiova, Romania - 1 piece;

- electrical power transformer, oil-cooled, type TTU-Al, 400 kVA power, 20000 V/400 V, 50 Hz, made by Electroputere Craiova, Romania- 2 pieces;

- electrical power transformer, oil-cooled, type TTU-Al, 250 kVA power, 20000 V/400 V, 50 Hz, made by Electroputere Craiova, Romania - 3 pieces.

Used drill pipes

Technical specification: 5 " x 9,19 mm x 9.000~10.000 mm;
Quality: S135;
Quantity: 30.650 kg - 109 pieces;
