A-3.3 TECHNICAL SPECIFICATION

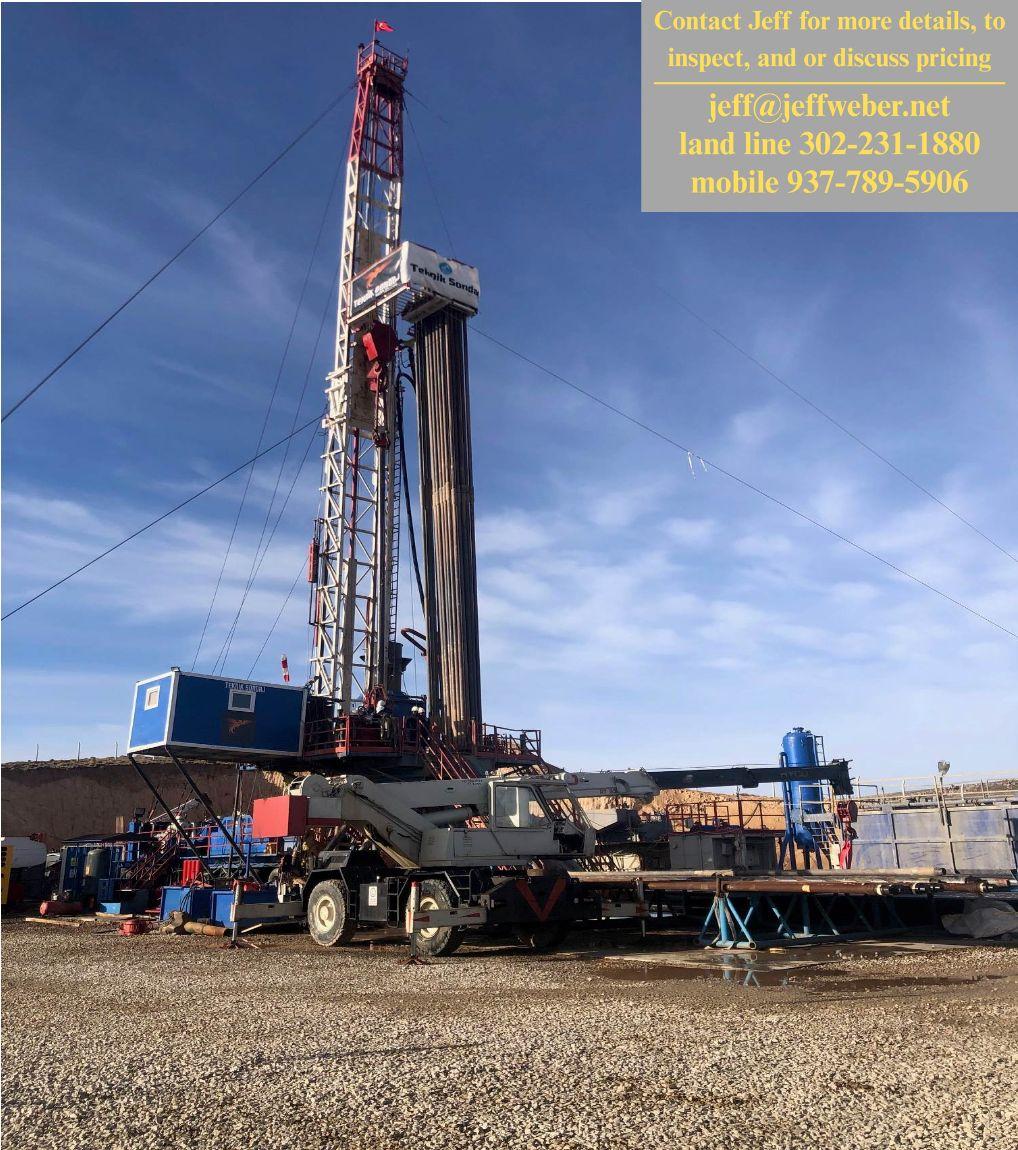

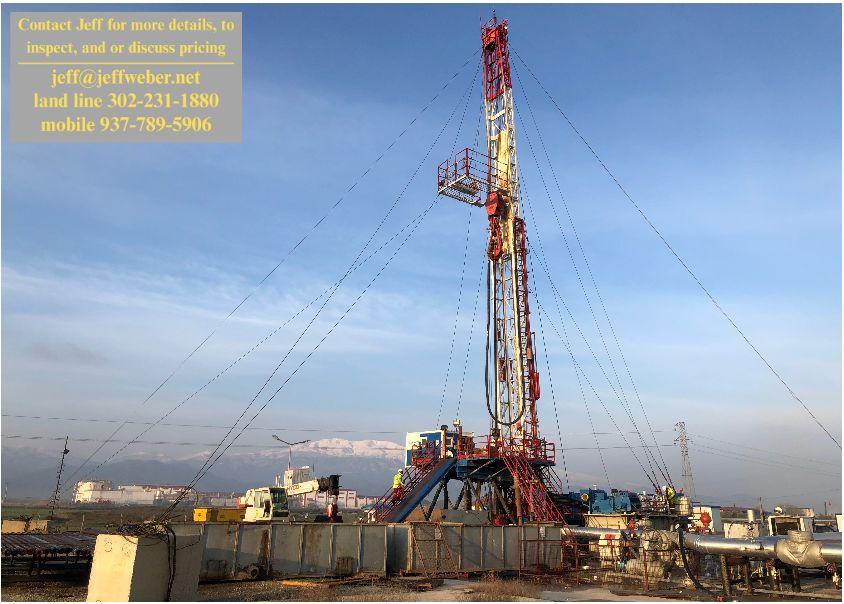

Carrier mounted mobile rotary drilling rig Drillmec PM 3000 model, suitable for -20°C to +40°C range temperature. The rig is manufactured by reference API standards.
Main characteristics:
Drill pipe: Range 2 double.
Drawworks rated input: 1000 HP.
Static hook load on eight lines: 365,000 lbs (180 metric ton).
Mast clear height (from ground): 110 ft.
Working floor height: 5,2 m (17 ft).
Setback capacity on rotary table beams: 350,000 lbs (160 metric ton).
Weight approx in transport condition: 70,000 kg (140,000 lbs).

A - 3.3.1 MAST
Technical Data (Ratings to API 4F)
Static Hook load (w/8 lines): 180 metric tons (365,000 lbs).
Clear height: 35,97 m (110 ft) from ground level.
Racking Board Elevation: 16.76 m (55 ft) from drill floor level.
Crown Block Sheaves:
- three cluster sheaves OD 36” grooved for 1.1/8” cable;
- one fast line sheaves OD 36” grooved for 1.1/8” cable;
- one deal line sheaves OD 20” grooved for 1.1/8” cable.
Hydraulic Catheads Break-out: max pull 12,500 Kg stroke 1,5 m.
Hydraulic Catheads Spinning: max pull 12,500 Kg stroke 1.5 m.
Setback capacity in weight:
- 2.3/8”-3.3/8” T.J.OD-Range 2 Double: 9140 m (30000’);
- 3.1/2” - 5” T.J.OD - Range 2 Double: 3730 m (12240’);
- 5” - 6.1/2” T.J. OD - Range 2 Double: 2850 m (9360’).

A - 3.3.2 DRAWWORKS - Petromak Model (PM 180)

DOUBLE DRUM
Main Drum:
Diam. x Lenght: 26” x 42.1/2”
Spooling Capacity: 700 m (2,300 ft) of 1.1/8” OD wire line
Single line pull on second layer: 24 metric tons (53,000 lbs)
32 –PM-1000 air clutch for drum working
28-PM- 525 air clutch for HydroBrake
Brake diameter x lenght: 1168,4x203,2 mm (46” x 8”)
Raising speeds: 5 forward, 1 backward
Auxiliary Hydraulic brake: 700 RPM x 3500 Hp

Chains:
Main drum chain: 1-1/2” double side double row DIN-ISO Sand reel chain: 1-1/2” double side double row DIN-ISO HydroBrake chain: 1-3/4” one side double row DIN-ISO
