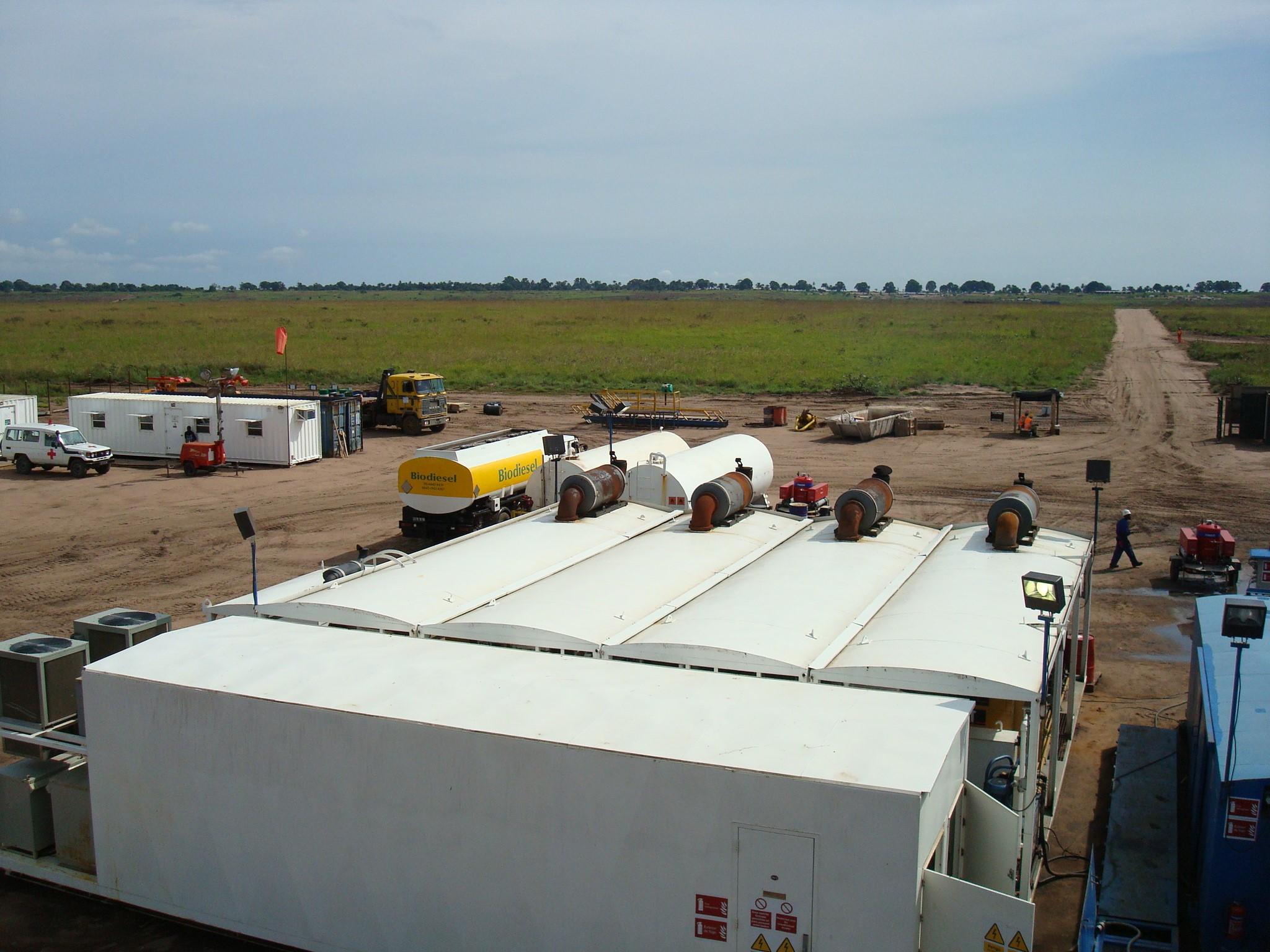

Drilling Rig Caterpillar AC Generator Package

This Generator package can be sold as a stand alone package or with the Rig package. The Rig package is a Mid-Continent Unit 712 Diesel Electric, complete with 1200 hp Drawworks and 2 x 1600 hp Mud Pumps and all other rig equipment. Details of Rig package on request.

The Generator package was purchased new and completed a five well program with drilling depths from 2000 – 2500 metres. The rig has not done any other drilling after completing this drilling program and has been stacked awaiting further opportunities to develop in Angola.

The rig is currently stacked in Angola and is approximately twenty kilometres from port. The camp units are stacked with the rig with some in a secure stack yard.

Generator No 1 Electric Genset

Origin USA
Manufacturer Caterpillar
Condition Used
Rated 1500 hp / 1875 kVA @ 1800 RPM
Engine Type V-12 cyl, 1500hp 3512B
Engine Serial No / Age 1GZ03288 / 2006
Arrangement No 2741995
Total hours run 4629
Alternator Caterpillar
Type SR-4 / 1875 Kva
Arrangement No 262-8102
Synchronized 3ph / 480 / 600v / 60hz
Alternator Serial No / Age G4W00152 / 2006
Total hours run 4629
Cooling System HD Desert Radiators
Shelter Open sided with roof
Engine Diesel Day tank 1400lts with fuel monitoring system
Exhaust HD Muffler / Silencer
Dimension of building (mt) L11.05 x W2.75 x H3.40 (103 m³)
With HD skid & lifting points
Weight 25 ton (25000 kg)

Generator No 2 Electric Genset

Origin USA
Manufacturer Caterpillar
Condition Used
Rated 1500 hp / 1875 Kva @ 1800 RPM
Engine Type V-12 cyl, 1500hp 3512B
Engine Serial No / Age 1GZ03272 / 2006 Arrangement No 2741995
Total hours run 3242
Alternator Caterpillar
Type SR-4 / 1875 Kva
Arrangement No 262-8102
Synchronized 3ph / 480 / 600v / 60hz
Alternator Serial No / Age To be Verified / 2006
Total hours run 3242
Cooling System HD Desert Radiators
Shelter Open sided with roof
Air Dryers One DEGO-520
Thermal Mass Refrigerant Air
Dryer
One (1) CompAir CF0096N
1-1/2” B General Purpose Filter
unit
One (1) CompAir CF0096N
1-1/2” C Oil Removal Filter unit Receiver 1m³
Engine Diesel Day tank 1400lts with fuel monitoring system
Exhaust HD Muffler / Silencer
Dimension of building (mt) L11.05 x W2.75 x H3.40 (103 m³)
With HD skid & lifting points
Weight 25 ton (25000 kg)


Generator No 3 Electric Genset

Origin USA
Manufacturer Caterpillar
Condition Used
Rated 1500 hp / 1875 Kva @ 1800 RPM
Engine Type V-12 cyl, 1500hp 3512B
Engine Serial No / Age 1GZ03271 / 2006
Arrangement No 2741995
Total hours run 4807
Alternator Caterpillar
Type SR-4 / 1875 Kva
Arrangement No 262-8102
Synchronized 3ph / 480 / 600v / 60hz
Alternator Serial No / Age G4W00148 / 2006
Total hours run 4807
Cooling System HD Desert Radiators
Shelter Open sided with roof
Aid Compressor No1 CompAir / 37kw / 10 bar /
Model L37-10A
WP / CMF 120psi / 170cfm
Volume 5.43m³/min
Engine Diesel Day tank 1400lts with fuel monitoring system
Exhaust HD Muffler / Silencer
Dimension of building (mt) L11.05 x W2.75 x H3.40 (103 m³)
With HD skid & lifting points
Weight 25 ton (25000 kg)


Generator No 4 Electric Genset

Origin USA
Manufacturer Caterpillar
Rated 1500 hp / 1875 kVA @ 1800 RPM
Engine Type V-12 cyl, 1500hp 3512B
Serial No / Age 1GZ03180 / 2006
Arrangement No 2741995
Total hours run 4807
Alternator Caterpillar
Type SR-4 / 1875 Kva
Arrangement No 262-8102
Synchronized 3ph / 480 / 600v / 60hz
Serial No / Age G4W0098 / 2006
Total hours run 5930
Cooling System HD Desert Radiators
Shelter Open sided with roof
Aid Compressor No2 CompAir / 37kw / 10 bar /
Model L37-10A
WP / CMF 120psi / 170cfm
Volume 5.43m³/min
Hydraulic Power Pack One (1) electric complete with
600 lt reservoir
Engine Diesel Day tank 1400lts with fuel monitoring system
Exhaust HD Muffler / Silencer
Dimension of building (mt) L11.05 x W2.85 x H3.40 (107 m³)
With HD skid & lifting points
Weight 25 ton (25000 kg)



Motor Control Centre (SCR Room)

Make M&I
SCR Bays 4 x bays with duel motor capability
2 x bays, one per mud pump
1 x bay for Drawworks
1 x bay, spare for Drawworks or
for Independent Drive Rotary Table
Air Condition Units Two
AC Panel 440 V / 220 V supply with all AC controls
Transformers Two 440 V / 220 V
Input / Output 480 volt, 3 Ph


Cables
One lot of AC electric cables from Generators to SCR / Motor Control Centre.
One lot (DC Cables supplied with Mud Pumps, Drawworks and Rotary Drive motors) If purchased with Rig package.

Spares and Supplies
Full compliment of running electrical spares for SCRs, Motor control centre and Rig. (Some spare motors on request)
Dimensions of Building (mt)
L12.90 x W3.30 x H3.38 (144 m³)
With skid lifting points
Weight 25 ton (25000 kg)
Building Fully enclosed, duel exit, Fully Air Conditioned on HD Skid with lifting points.

All Generator and SCR buildings come with complete with sets of florescent lights.
New Electrical spares purchased for drilling program was 86k US dollars, some will have been used.
The rig also has a stand alone Caterpillar 3406 stand-by emergency generator set 180Kw / 60Hz for emergency lighting and air compressors if all rig power is lost, to be sold with Generator package or Rig package.
Further details on equipment or Rig package on request.
