Jeff Weber

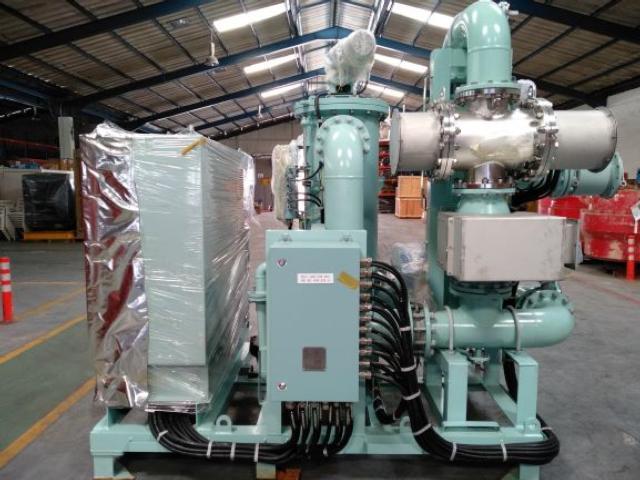

Ara Plasma Ballast Water Treatment System
Model: ARA-028 (250 m3/hr)
Pump Capacity: 250m3/hr
System Type: Skid Type
Material: SUS304 & SUS316L Part, Carbon Steel Part Tag# 801XX001, 801XX002, 801XX003, 801XX004
Fluid Data:
Pressure Drop: 0.2 - 1.4 bar
Working Pressure: 2.0 - 6.0 bar
Test Pressure: 9.9 bar (+/- 10%)
Design Pressure: 8.6 bar
Fluid: Sea Water, Fluid Temp. Max 49 Deg C
Ambient Temp. Max: 0-55 Deg C
Inlet/outlet Conns: JIS 10L-200A, DN250, FF-SO, Flange Drain Conn for Back-Flushing: JIS 10K-65A, DN65, FF-SO, Flange Back-Flushing Capacity of Filter: 95 m3/hr max
KM3 Power Supply: 180V x 3Ph x 60Hz,
Power Source: AC 480V, 50/60Hz, 3Ph
Control Source: AC 230V, 50/60 Hz, 1 Ph & DC 24V
Power Consumption: 32.5 - 35.5Kw

4 Assemblies

Pacific Engineering

5/11/2015

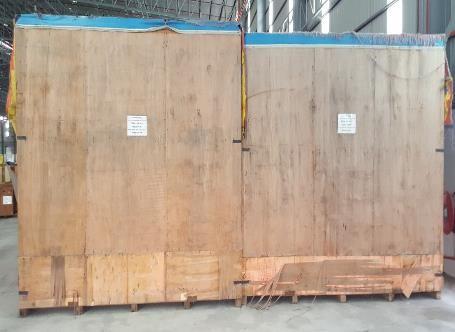

Box #1 Ballast Water Treatment System & Accessories
Box #2 Ballast Water Treatment System & Accessories
Box #3 Ballast Water Treatment System & Accessories

346cm x 200cm x 287cm 3,000 Kgs
346cm x 200cm x 287cm 3,000 Kgs
346cm x 200cm x 287cm 3,000 Kgs
