Centrifugal Pumps – 2HPX10 – API 610

Year: 2015
Brand: Flowserve
Model: 2HPX10A C6 – API 610
Quantity available: 3 units

Typical Application
These API 610 Flowserve HPX process pumps are suitable for a wide range of refinery, petrochemical and hydrocarbon processing services, including for example:
• Crude oil transfer
• Condensate service
• Naphtha and light hydrocarbons
• Refined petroleum products
• Petrochemical process liquids
• Chemical process applications compatible with pump materials
• Tank farm transfer and pipeline service

Description

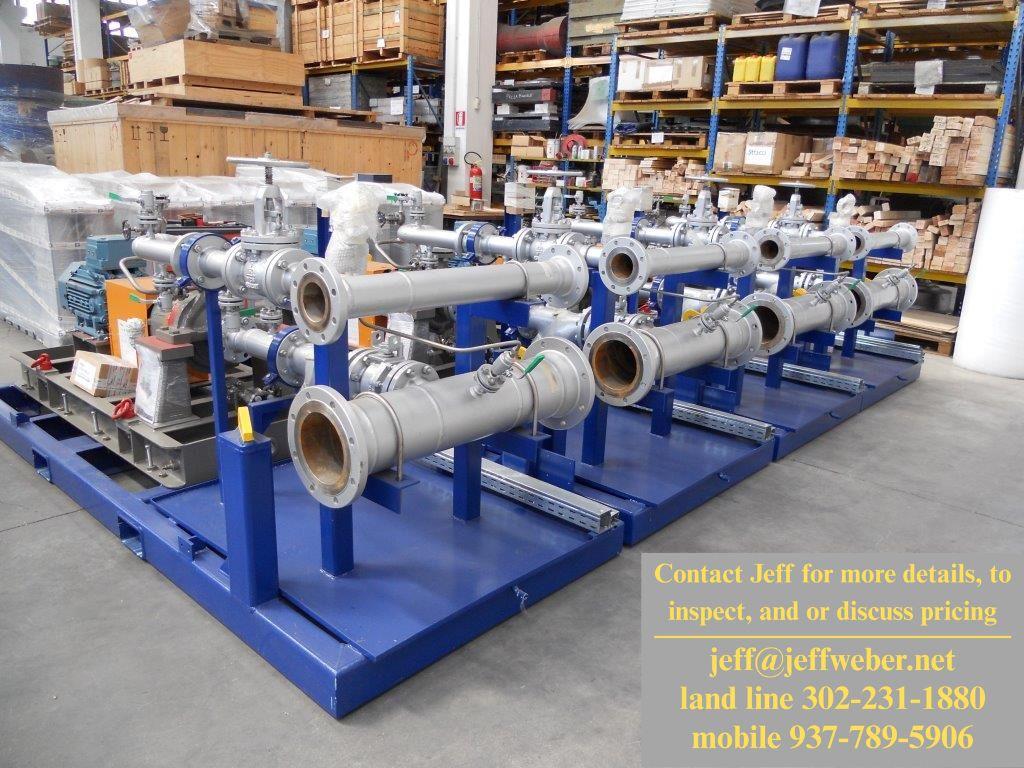

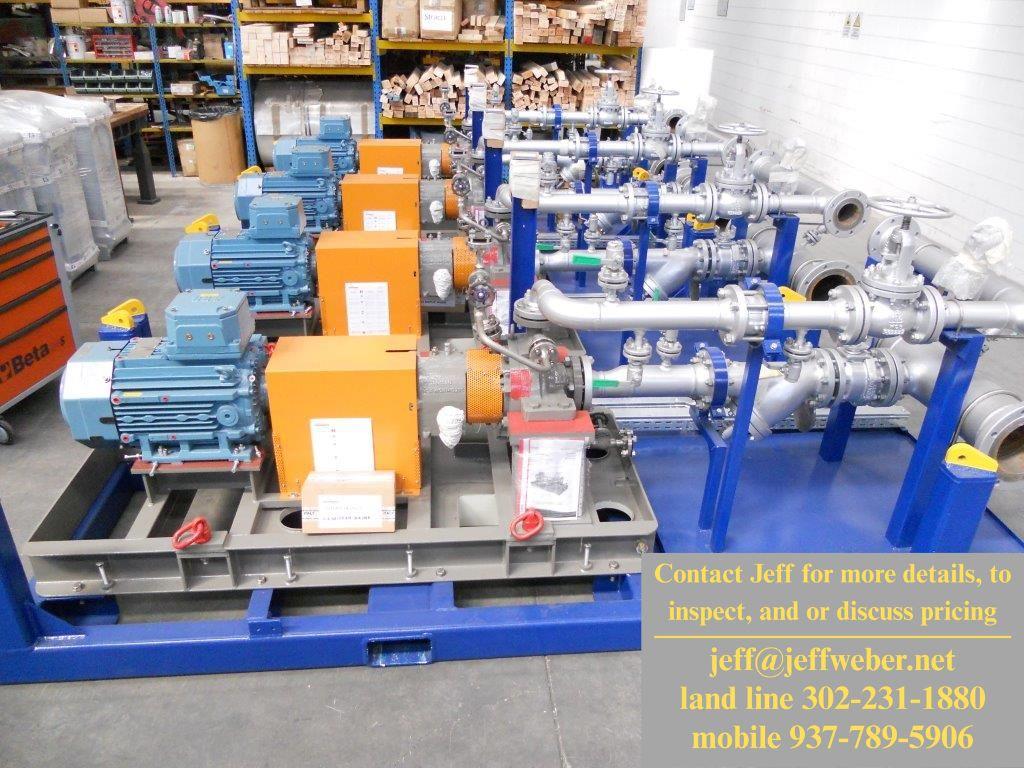

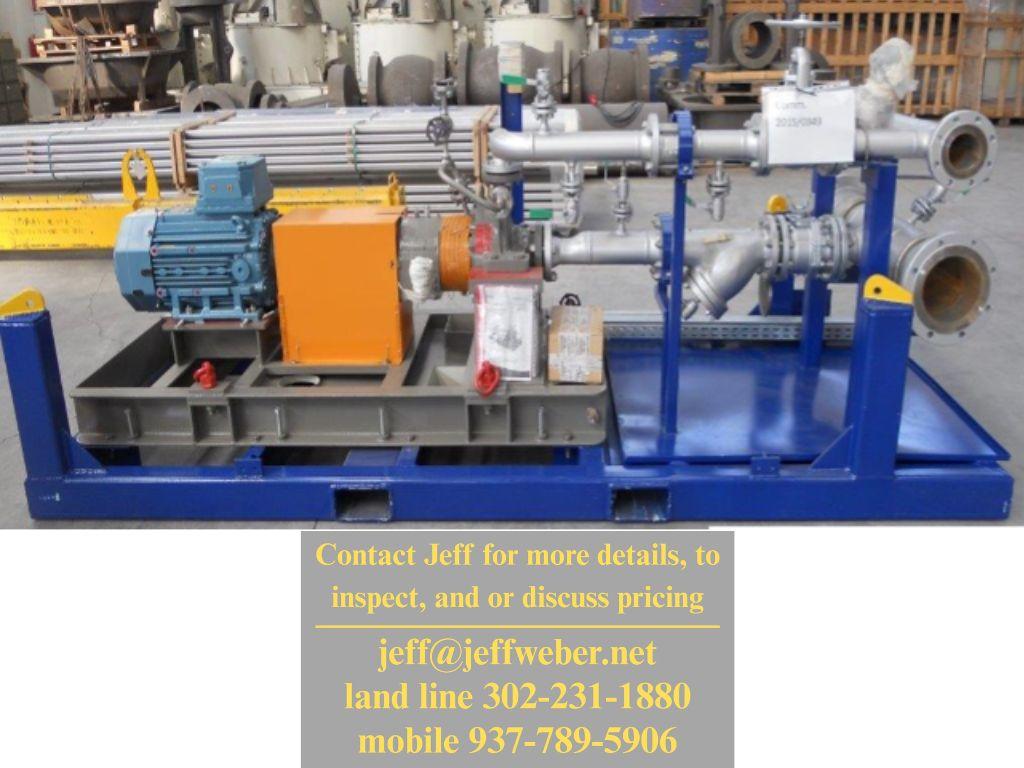

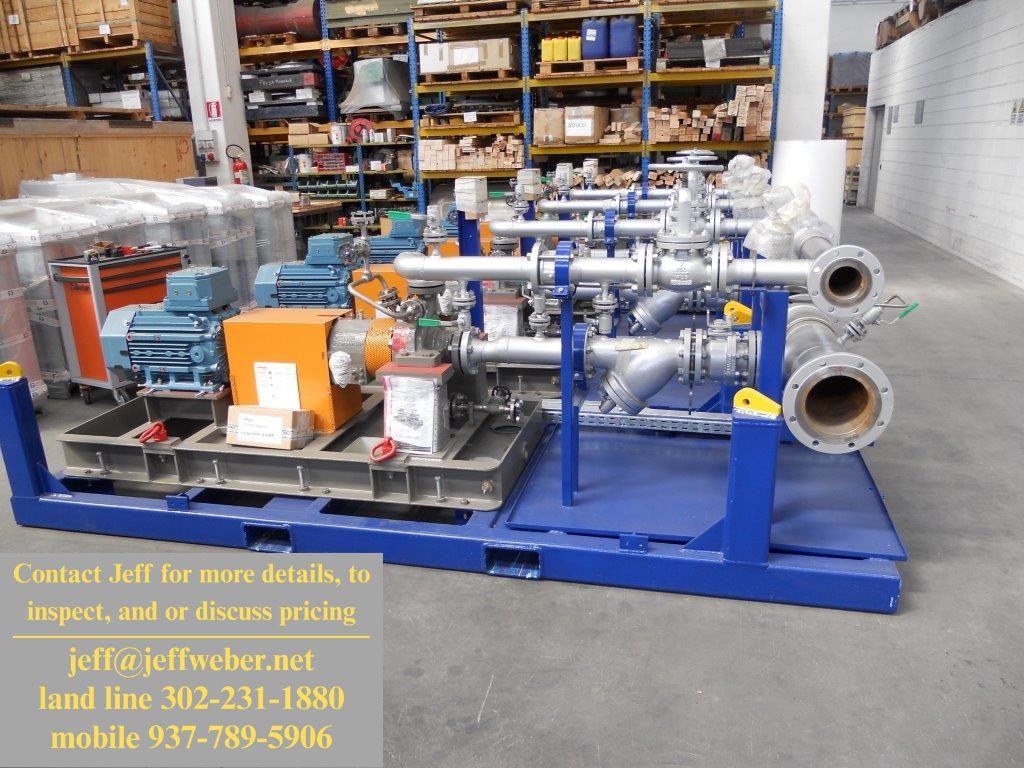

Complete API 610 centrifugal pump packages including pump, electric motor and baseplate.
Main specifications:
• Pump type: Flowserve HPX process pump
• Design standard: API 610 – 10th Edition
• Material: C6 with NACE certification
• Mechanical Seal: Single seal – Plan 11
• Driver: ABB Explosion Proof Motor
• Motor classification: ABB EExd IIB T4 Gb
• Power: 30 kW
• Pump speed: 2950 rpm
• Capacity: 5,000 – 10,000 US bbl/day
• Specific gravity: 0.9
• Head: approx. 96 psig (see datasheet curve)
• Test tolerance: API 610 – 10th Edition

The pumps were purchased in 2015 but never installed nor operated.
They have been stored in warehouse in very good preservation conditions.
Sale conditions: AS IS – WHERE IS
Original technical datasheet of the pump package available on request

Contact Jeff for more details, to inspect, and or discuss pricing.
