Jeff Weber

1. Manufacturer Price = USD 158,000/each
2. Asking Price = USD 145,000/each
3. Location = Mexico
4. Year Built = 2020
5. Condition = New
6. Manufacturer Data Book = Complete and available
7. Technical Specifications:
a. Manufacturer = Ruhrpumpen
b. Model = 850 VLT-LX
c. Pump Type = Vertical Centrifugal
d. Stages = 10
e. Suction/Discharge Nozzles = 4” x 300# RF / 3” x 300 # RF
f. Process Fluid = Ethane (-10 °C)
g. Design Temperature = -88 °C
h. Capacity Min/Max= 15/34 m3/hr
i. Discharge Pressure = 21 Kg/cm2
j. Head = 385 m
k. Pump Power = 72 BHP
l. Driver = Electric Motor
m. Driver Rating = 460v/3Ph/60Hz/3545 RPM
n. Area Classification = Class 1 Div. 1

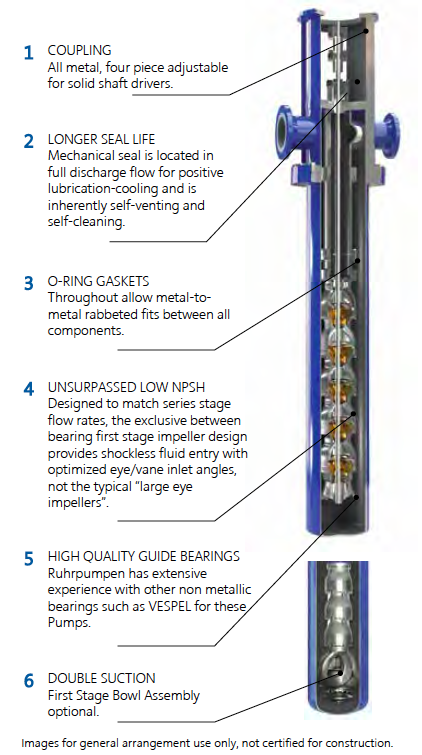

The VLT / VMT pumps are vertical process pumps of the “double casing” type as defined by API-610. By multi-staging series stages in the medium specific speed design range, the
VLT / VMT pumps provide outstanding efficiencies and low cost operation in high head applications. The special first stage allows operation with extremely low NPSH requirements while running at optimum speeds. Exclusive hydraulic and mechanical features provide continuing reliability with optimum performance.
