7.0 Scope

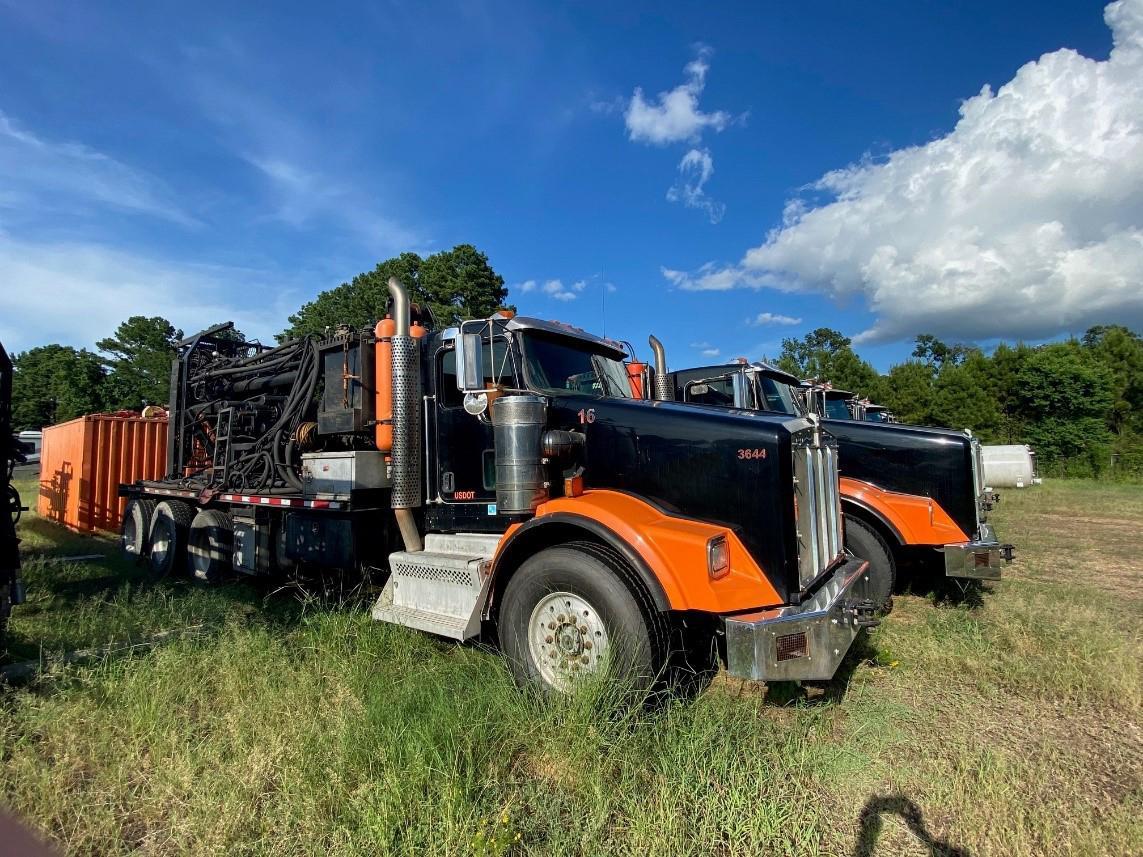

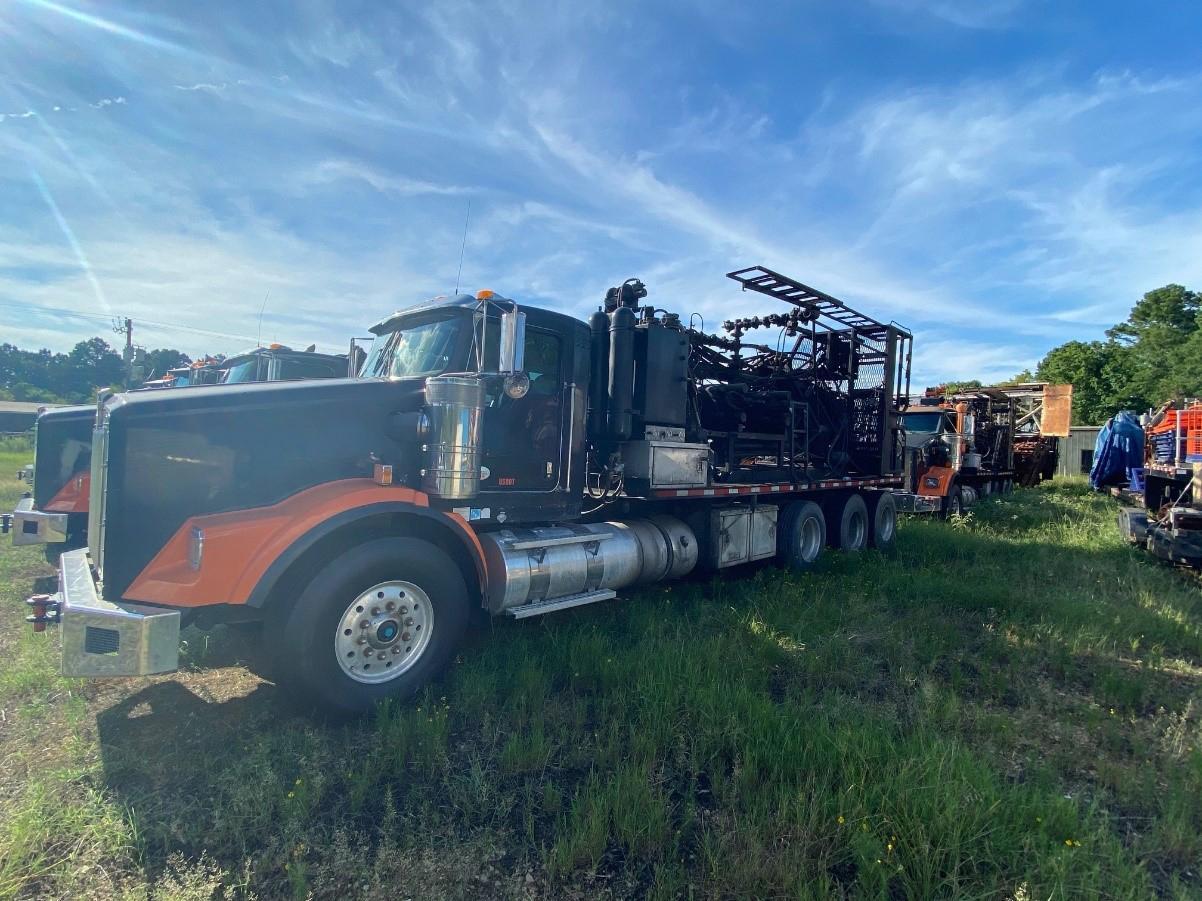

This technical proposal provides a description of the 170k 2-leg snubbing unit that is truck mounted. It is designed for use in a variety of operations utilizing a crane or workover rig to rig up/down. The model described within this proposal is designed and built to the highest standards. This snubbing unit is completely assembled, cleaned, inspected and tested following this specification.

8.0 Snubbing Jack

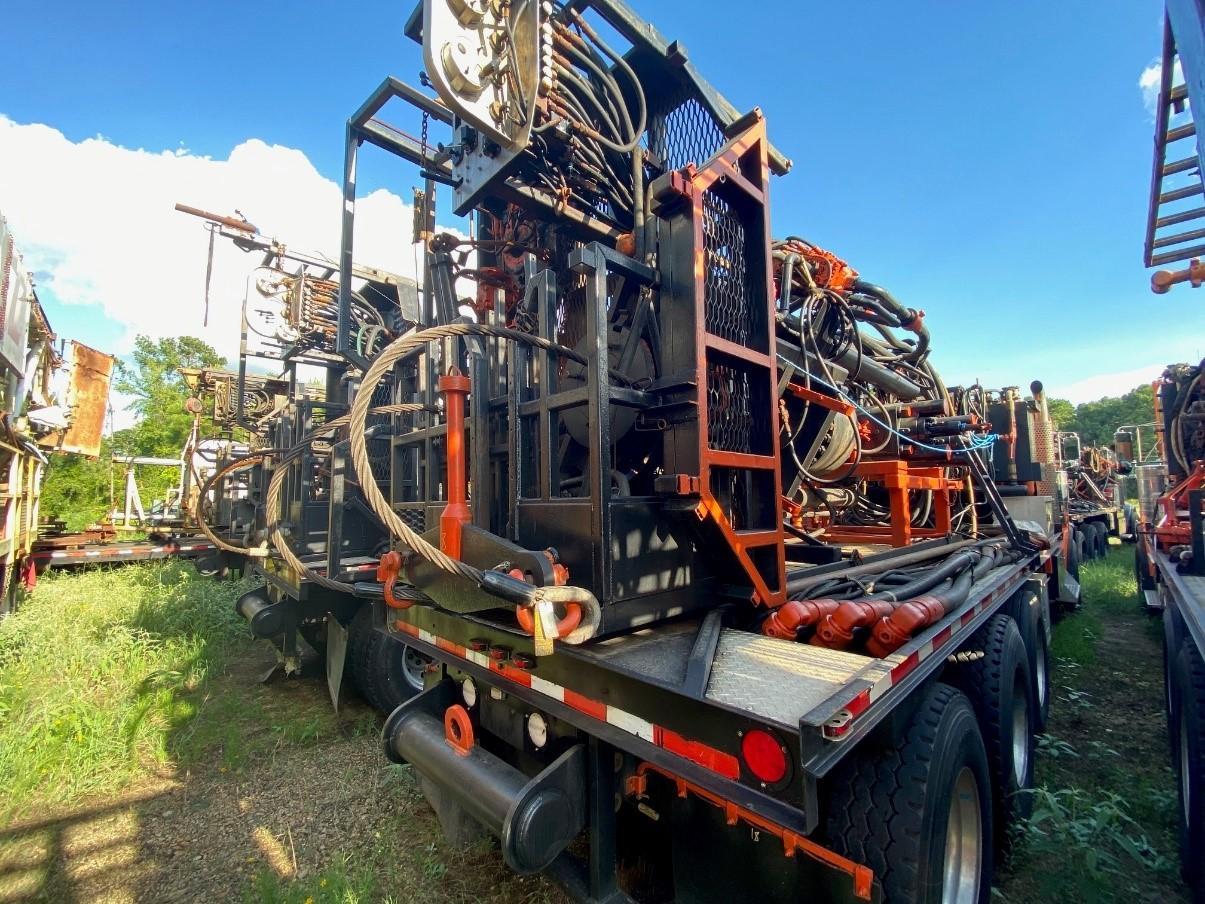

This jack assembly is designed to push (snub) and pull (lift) pipe into and out of a dead/pressurized wellhead utilizing three (3) hydraulically operated 170k, 7-1/16” slip bowls. This assembly is designed to be used as both a Stand-Alone snubbing unit, and a Rig Assist snubbing unit. This assembly is designed to work in conjunction with the Annular BOP and 2 x BOP stripping rams. This assembly will consist of the following components:

- Jack Plate
- Passive Rotary
- Traveling Snubbing Slip Bowls
- Control Panel(s)
- Upper Work Platform
- Stationary Snubbing Slip Bowls
- Stationary Heavy Slip Bowls
- Jack Cylinders
- Annular Preventor
- Upper stripping Ram
- Bleed off/ Equalize Spool
- Bleed off/Equalize Plug Valves (1” ID)
- Lower Stripping Ram BOP

8.1 Jack base
50. This assembly is designed so that the Annular can be split for changing elements in the Annular.
51. This assembly will be the main support structure for the hydraulic cylinders, workbasket, Annular BOP and Stationary Snubbing Slip bowl.
52. The jack base will have one (1) manually extendable ladder assembly

8.2 Passive Rotary System
53. The primary design of the rotary is to allow the snubbing unit to perform drilling/milling operations in both snub/lift situations. This Passive Rotary system works in conjunction with a power swivel if required.
54. All hydraulic hose connections are integrated quick disconnector type.
55. The passive rotary allows the unit the ability to set tools requiring rotation in pipe heavy or pipe light mode.

8.3 Jack Cylinders
56. The two (2) jack cylinders will be custom made and have a 6” (15.24cm) bore x 4” (10.16cm) rod x 10’ (3.05m) stroke.
57. The cylinders can produce a combined push (snub) force of 85,500 lbs. (38,555 kg.) and a combined pull (lift) force of 170,000 lbs. (77,110 kg.) These assemblies will be mounted to the jack base assembly.
58. Anti-wear bands on packing glands and pistons.
59. 3,000 Psi maximum working pressure
60. Hydraulic braking system for both lift and snub.

8.4 Jack cylinder control valve
61. This valve assembly will consist of a “Husco” 6400 pilot operated split spool control valve which controls the up and down motion of the jack cylinders.
This valve will be plumbed to include a high speed (regen)/low speed circuit on the up stroke of the jack cylinders. This allows the operator to run the jack cylinders at a higher speed on the up stroke. The regen selector will be in the workbasket under the operator’s console.
62. The hydraulic flow lines from the Husco valve to the jack cylinders will be steel piping. All other hydraulic flow lines on the snubbing jack assembly will be hydraulic hoses.
63. Counterbalance valves in up and down control circuits to control over running loads.
64. The split spool valve assembly will be mounted to the jack base assembly.
65. The “Husco” 5000 A62 pilot operated control valve will be mounted in the operator panel.

8.5 2-1/2-Gallon Annular BOP Accumulator (Surge bottle)
66. The purpose of this assembly is to prevent overpressure of the Annular BOP control circuit. The nitrogen charged accumulator will compress when an upset on a pipe joint passes through the Annular BOP. Assembly mounts on the jack base.
8.6 Slip bowls
5.5″/225K High Capacity Slip Bowl
• Rated load: 225,000 lbs.
• Designed and tested in compliance with API-8C, with factor-of-safety rating of 1.5:1
• Cast carriers with keyway slots
• Full opening
• Overall dimensions: 22” wide x 21” length x 18-3/8” high
• Weight: approx. 550 lbs. less inserts
• Traveling bowl mount pattern: 1-1/8” tie rod hole pattern: 4 ea. equally spaced on 14” DBC (approx. 9.9” x 9.9”)
• Gate pin dims: 13-1/8” center to center of gate pins
• Insert max: 5-1/2” diameter
• Tie rod size: 1-1/8” diameter
• Gate opening: 6-5/8”
• Max open dia. less inserts: 8-3/8”
• Normal operating pressure: 600-1500 psi
• Cross port relief valve
• Hose connections: 3/4” quick disconnects

8.7 Work baskets
67. There is one (1) work basket mounted on this unit.
68. The upper basket is the primary operational basket.
69. This assembly will be a box tubing structure.
70. The workbasket floor will be steel grating.
71. The workbasket will include the following items: fall arrest mounting points, hand tool hangers, operator’s toolbox, TIW storage post. Tong backup post
72. This assembly mounts to the jack base assembly.

8.8 Operator’s Control Panel
The Operator’s control panel is made of stainless steel, and the function of the valves and gauges, are engraved onto the panel in English. The panel is equipped with a cover to prevent contamination from dust and water.

This control panel will include the following components:

73. 1x Gauges for weight indication – 1 x gauge will read pipe heavy and 1 x gauge will read pipe light;
74. System pressure gauge
75. Wellbore pressure gauge
76. Slip pressure gauge
77. Annular BOP pressure gauge
78. BOP pressure gauge
79. Husco control valve plumbed with regen circuit for controlling the jack up/down function
80. Jack pressure adjust valve for adjusting jack pressure
81. 3-bank Slip bowl control valve for controlling the Slip bowl open/close function
82. 8-bank control valve for controlling Annular BOP and BOP rams open/close & equalize and bleed off functions.
83. Slip pressure adjust valve
84. Annular BOP pressure adjust valve
85. Regen selector valve for jack selecting jack speeds
86. Engine throttle control valve
87. Air outlet fitting for pneumatic tools under the control panel
88. Engine kill control valve.
9.0 Annular BOP
89. 7 1/16” 5k BOP Snubbing stripping stack
90. 1 x Annular Blowout Preventer, Annular Type “S”, 7-1/16” 5,000 psi (R-46) studded top x 7-1/16” 5,000 psi (R-46) flanged bottom, complete with seal kit and nitrile element. API 16a monogrammed to the latest edition, H2S trim, temp: t-20.
91. STRIPPING RAM: 2 x Blowout preventer, Cameron (or equivalent) “U” type, hydraulic operated/manual locks, 7-1/16” 5,000 PSI flange top x 7-1/16” 5,000 psi flanged bottom, standard bonnets, (dressed with 2 3/8” ram blocks), API 16a monogrammed, H2S trim, temp: t-20
92. 1 x Equalize and Bleed off spool, complete with hydraulic plug valves, 5,000 psi, 7-1/16” 5,000 (R46) flanged top x 7-1/16” 5,000 (R46) flanged bottom.
10.0 Snubbing spreader bar and lifting cables
4.1.1 1 x set of vertical lift spreader bar & lifting chains supplied
4.1.2 This assembly is picked up by a crane or rig and used to lift the snubbing jack assembly onto the wellhead.
11.0 Transport requirements
93. The unit including jack system, work baskets, gin pole, BOP/EQ/Bleed off system is designed and manufactured as integrated and in one lift for rig up and rig down. To be transported on custom truck.
94.

12.0 Hose kit
95. Hose kit assembly includes all the hoses required to operate all the functions of the jack assembly.
96. Quick disconnects are on one end of the hoses. The hose kit assembly can be disconnected from the power-pack.
97. The hydraulic hoses are rated to maximum hydraulic working pressure.
