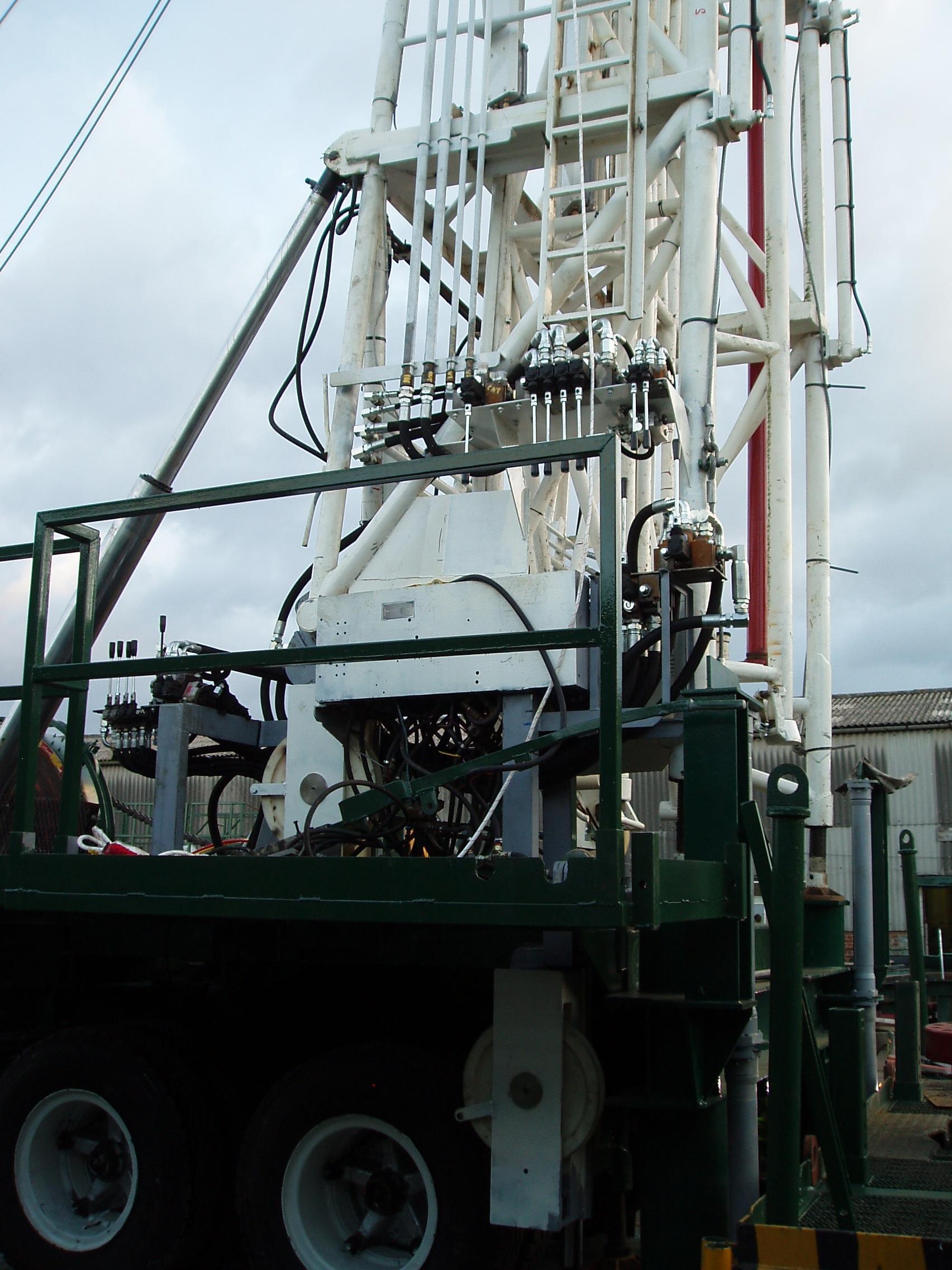

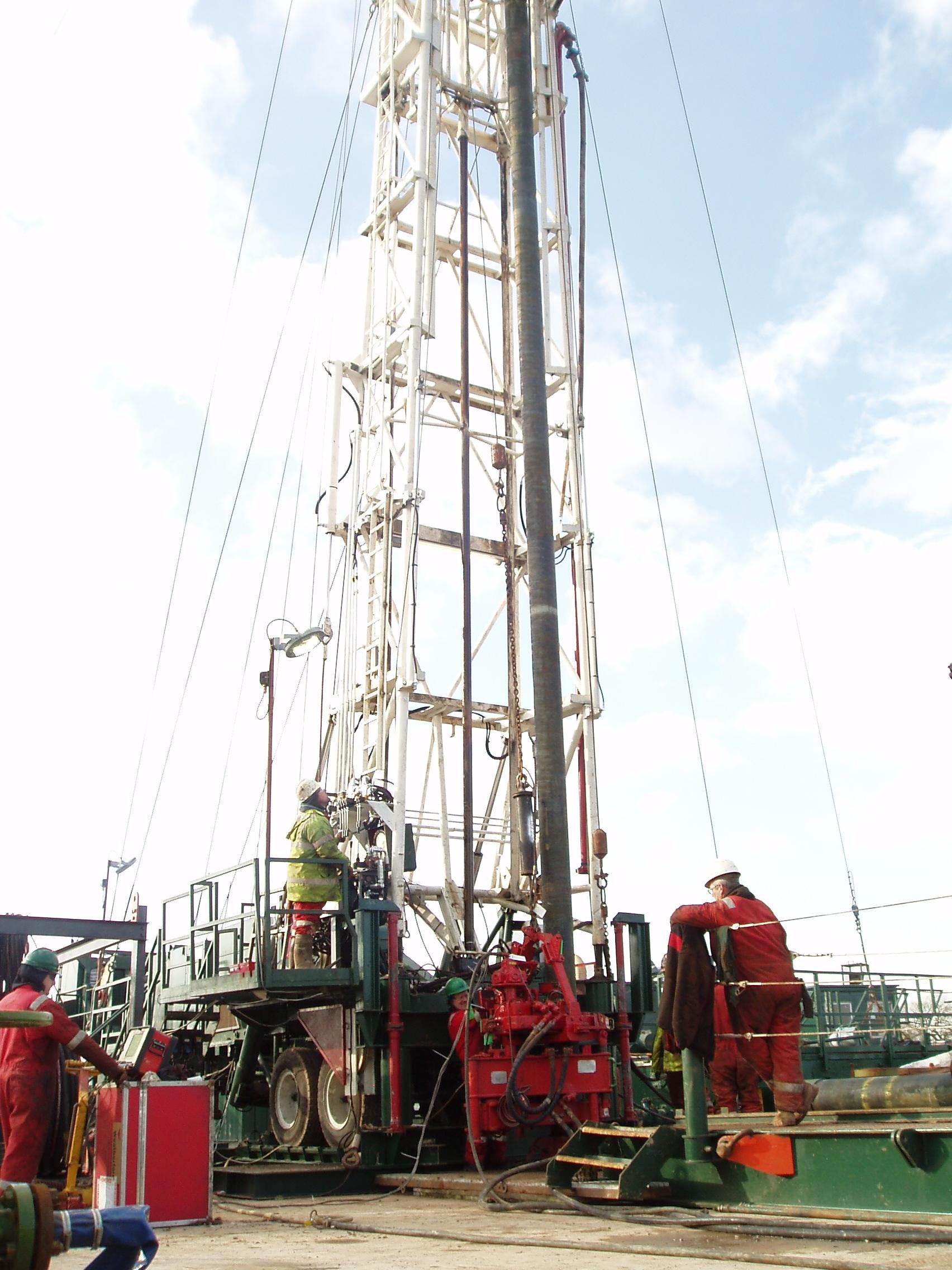

MODEL - Franks Comet 35-137TRD trailer mounted rig
DRAWWORKS - Franks

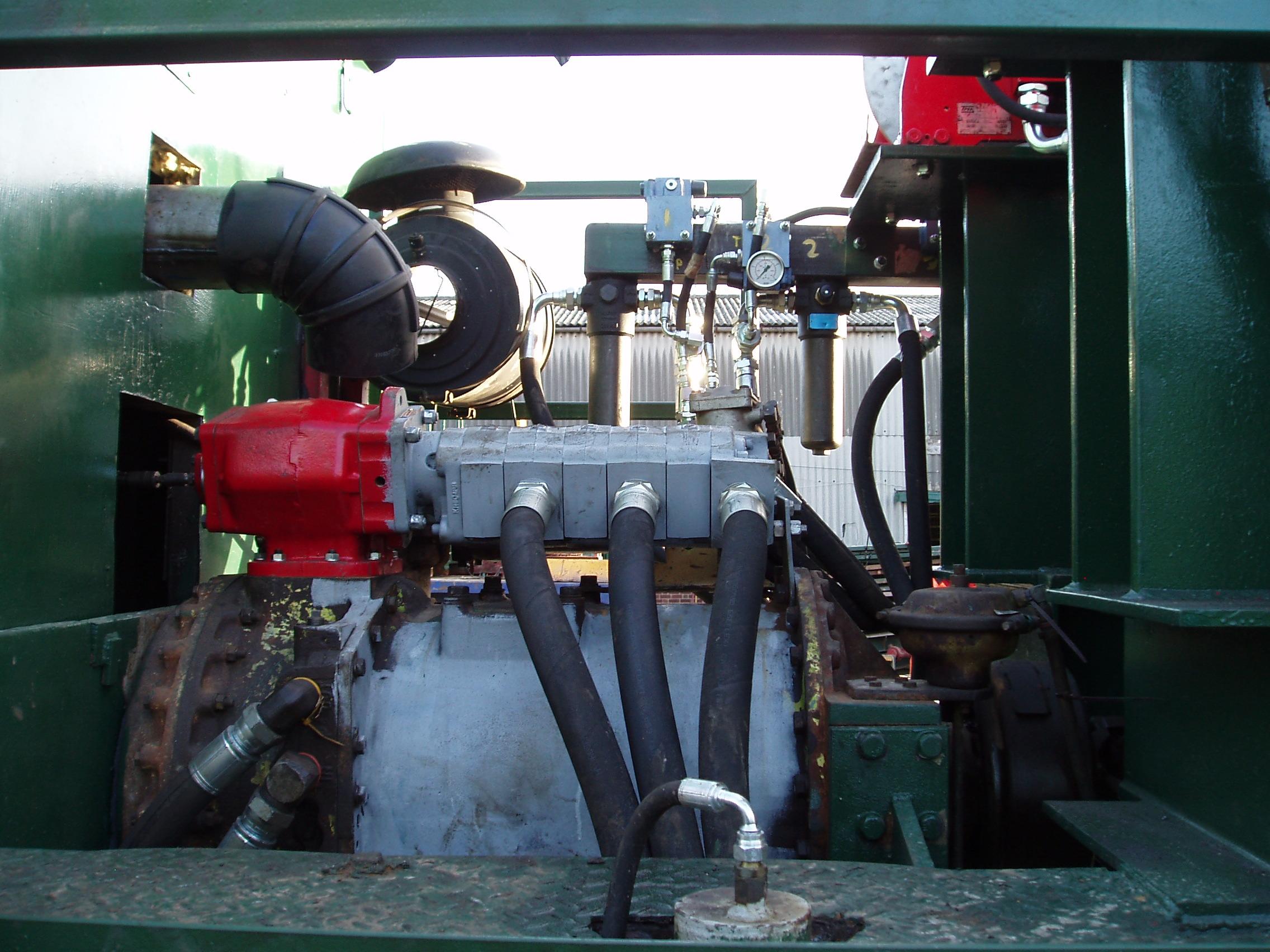

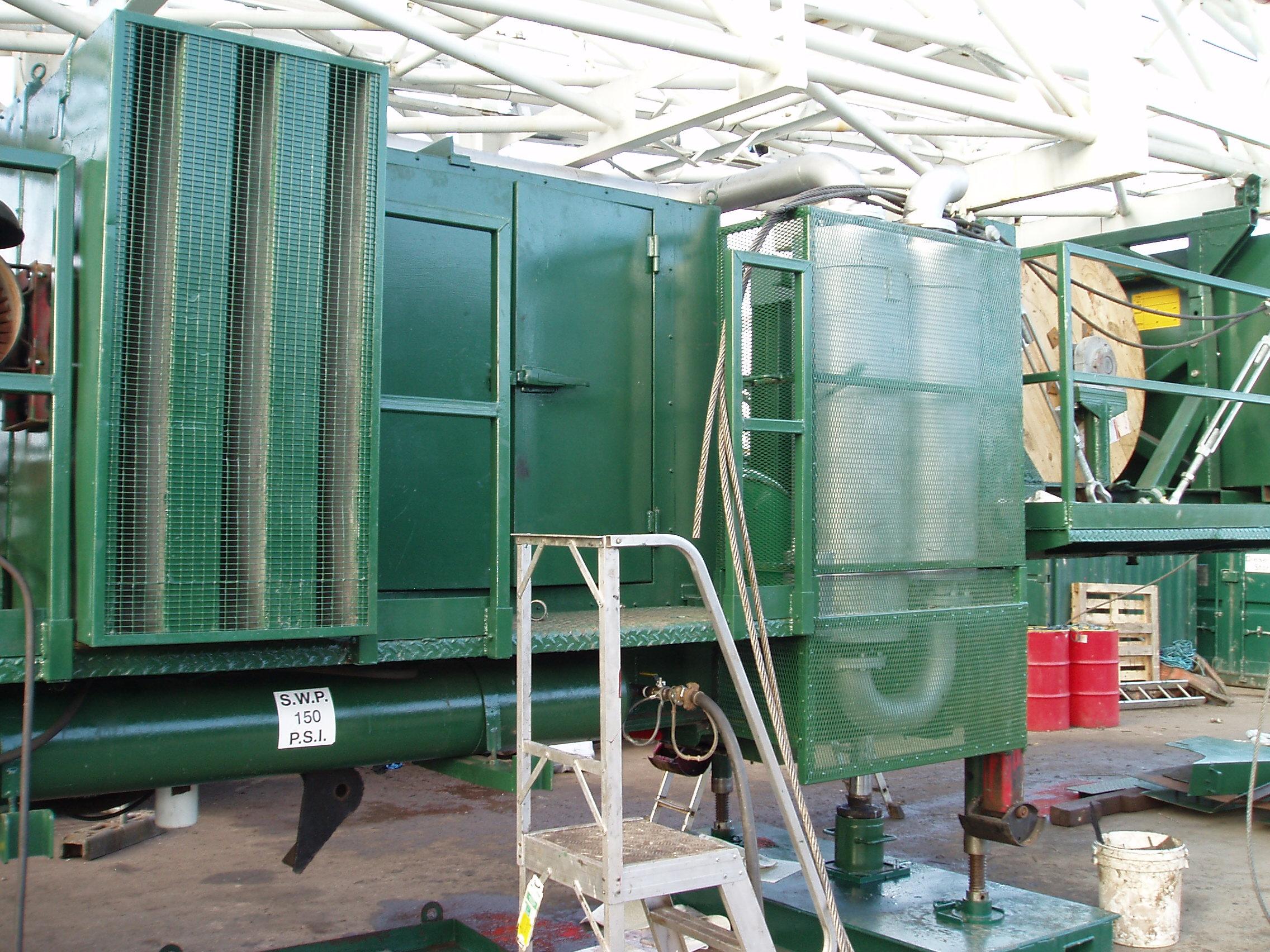

POWER - Detroit 8V71 (289 hp) housed in an integral acoustic
enclosure
MAIN DRUM BRAKES - 27" x 7″ double friction type
WATER BRAKE - Parmac 122 hydromatic brake c/w 250 gallon tank

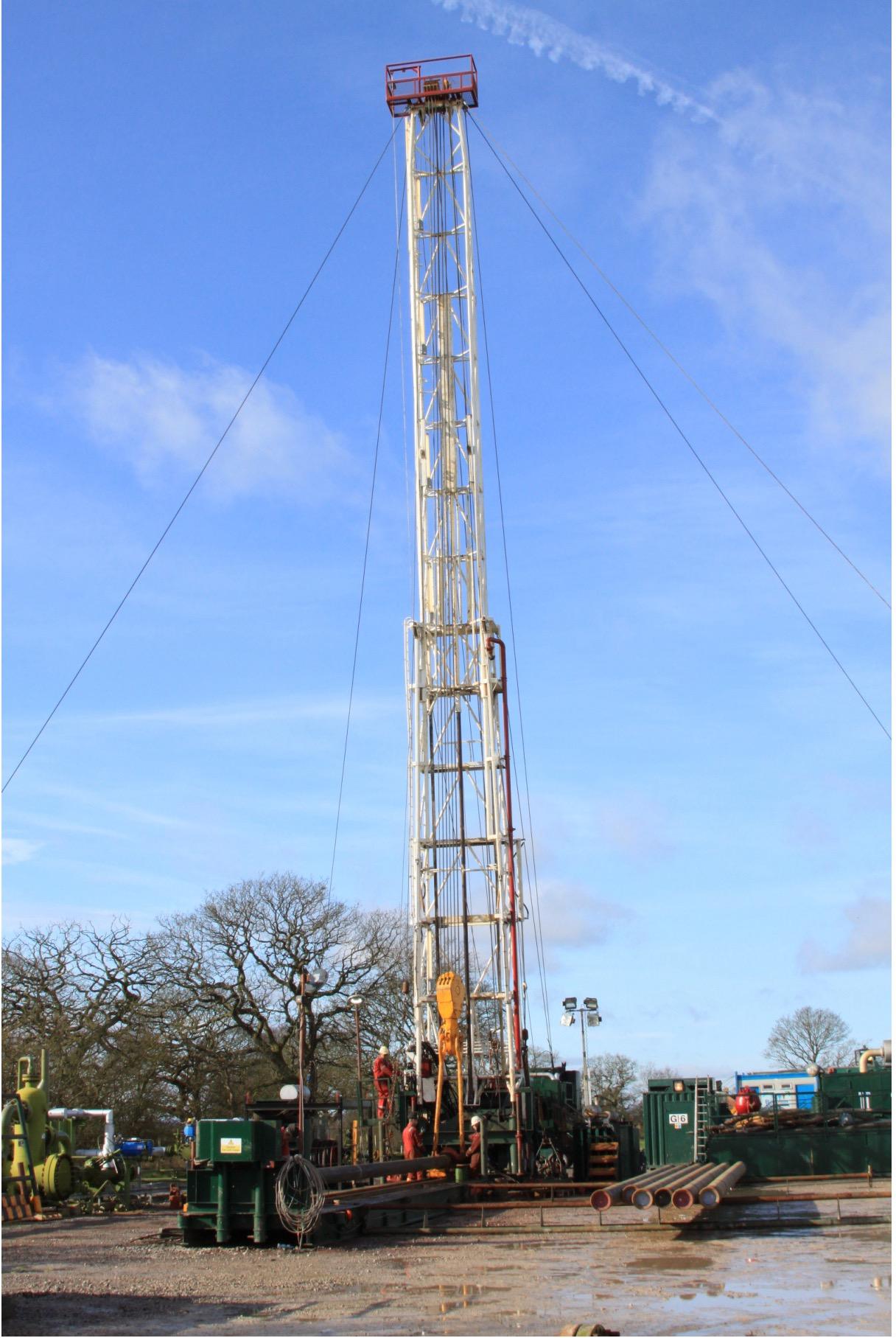

MAST - Franks Telescopic externally guyed
Height and Capacity - 96 foot, gross nominal capacity 159,000 lbs
Crown Block - 6 N° lines string to travelling block, 3 N° 24" diameter sheaves with 1 N° 28" dead line sheave grooved for 1" drill line
TRAVELLING BLOCK AND HOOK - Web Wilson
SHEAVES - 3 No 30″ Diameter grooved for 1" drill line
CAPACITY - 65 ton
DEADLINE ANCHOR - Open side spool with deadline anchor wire rope clamp for use with reserve line.
RIG WINCHES - 2 N° Argani Model TN32 10,000 lbs pull rating hydraulic winch with ⅝" wireline.
MUDBOAT - 5.40 metres long x 2.60 metres wide x 0.23 metres high.
WORKING PLATFORM/AREA - 2.44 metres x 4.42 metres x 1.04 metres high or 2.43 metres x 1.90 metres x 0.15 metres high
FUEL TANK - 2500 Litre Double Skinned

Contact Jeff for more details, to inspect, and or discuss pricing.
