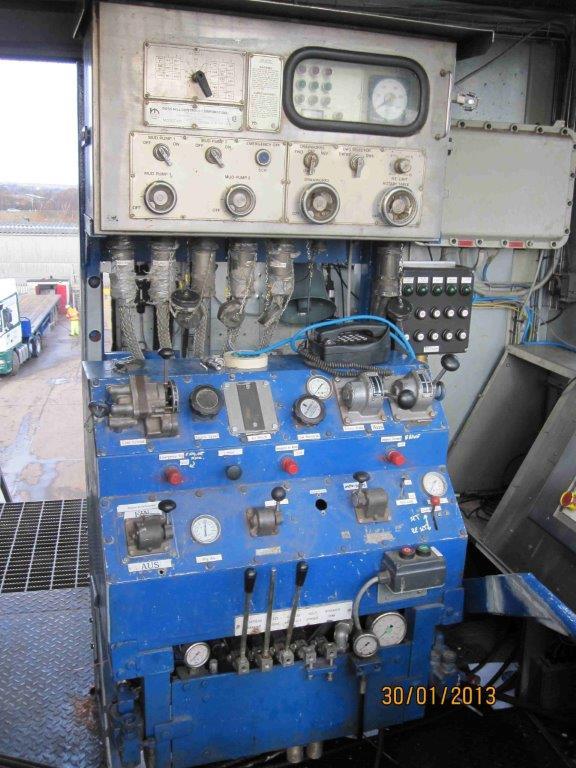

DRAWWORKS
Make and Model-Franks Cabot - 900

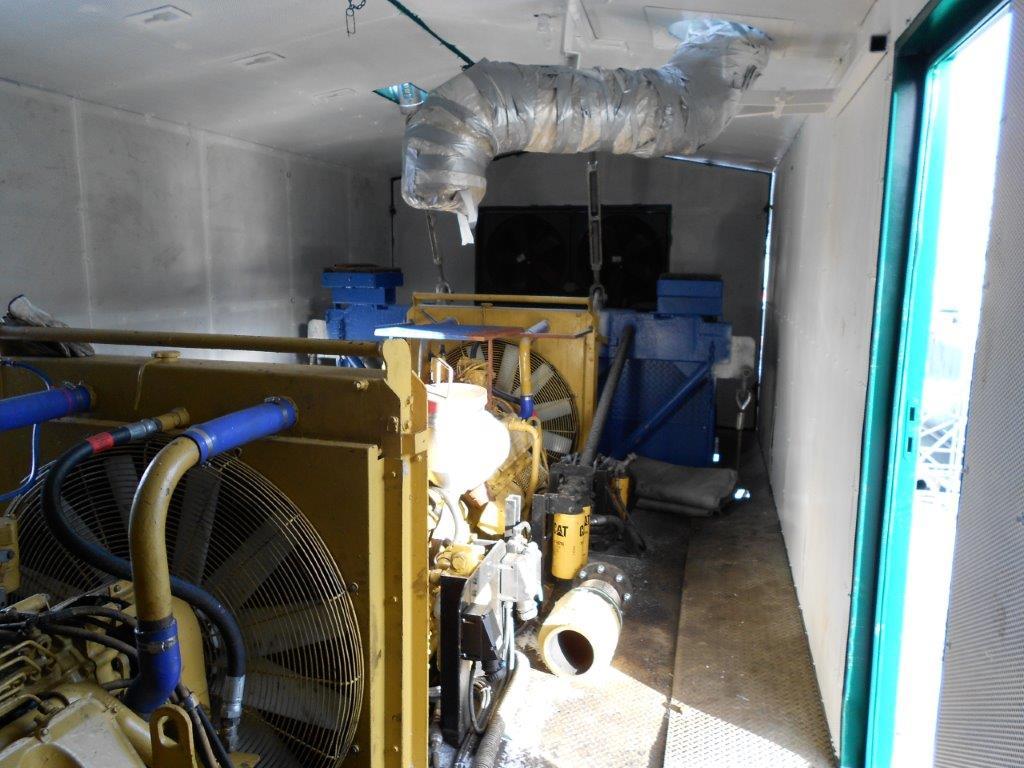

Power-2 no. Caterpillar 3408 Diesel Engines – 900 HP-Enclosed in soundproofed house.
Transmission - Alison 5861
Drum Grooving - Lebus 1(1/8)"
Auxiliary Brake - Parmac 22” DR Hydromatic Brake.
Catheads - Hydraulic Cathead System – Drilco Easy Torque.
Wire Line - Dyform 1 1/8” to extend ton miles and reduce slip and cut frequency.
Wire Line Anchor - National Type D. 1 1/8”.

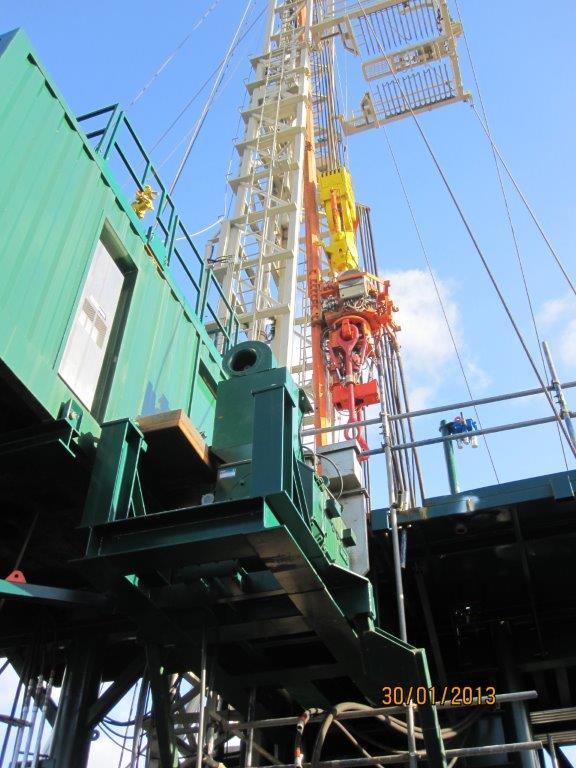

MAST
Make - Kremco / Dreco - Telescoping doubles mast
Guying - Internally guyed – no ground anchors required.
Dimensions - Clear Height 29.6 metres – rig floor to underside of crown.

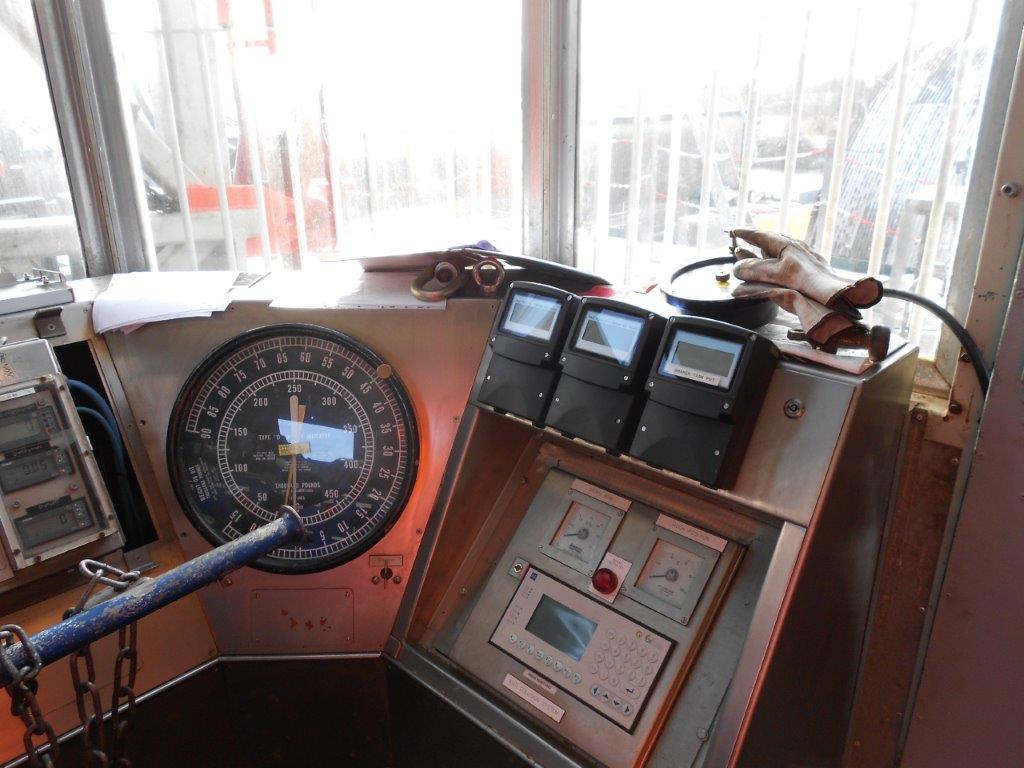

Capacity - Maximum Combined Operating Hook load 440,000 lbs
Racking Capacity - 2,500 metres of 5" drill pipe

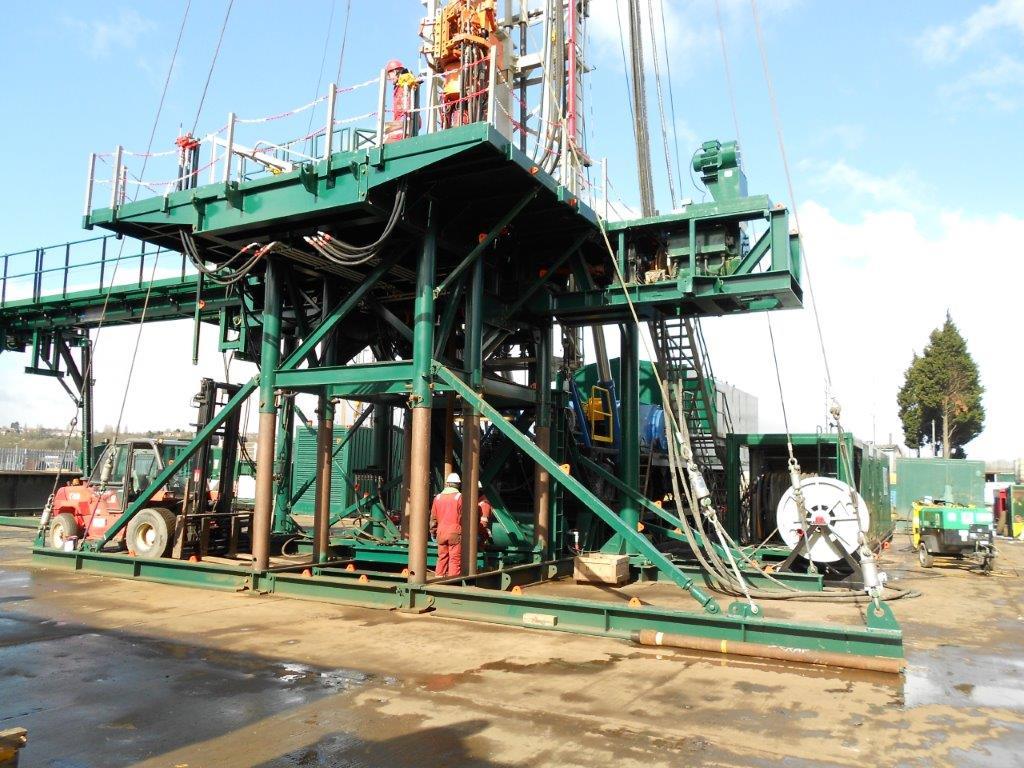

SUBSTRUCTURE
Make and Type - BENTEC API 4F - Telescopic.
Simultaneous Capacity - 400,000 lbs casing capacity with 280,000 lbs setback capacity Total Load 680,000 lbs.
Height to floor - 5.60 Metres RTE
Rig floor winches - 2 no. Braden 3T Hydraulic Winches
Man Riding Winch - Dog Hut roof mounted.
BOP Handling - Substructure mounted trolley system for 13 5/8” BOP Stack.

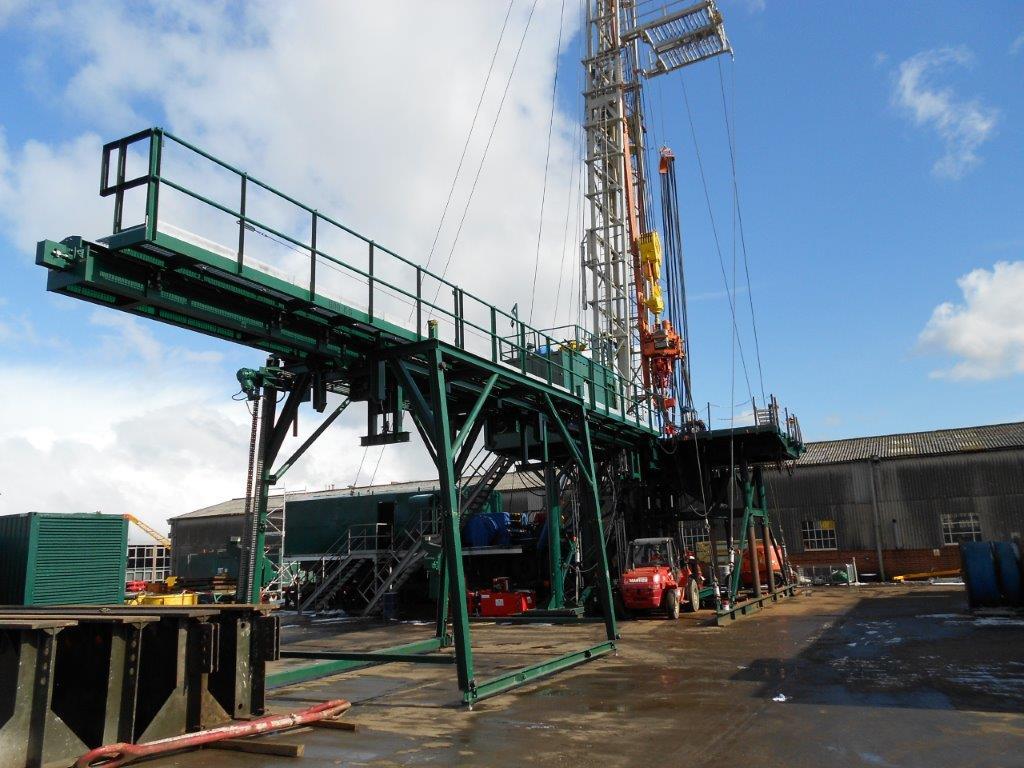

Horizontal Pipe Handler - EFC, Zone 1 rated. 2 7/8” to 13 3/8” Tubular range 3 tonne maximum tubular weight

ROTARY EQUIPMENT
ROTARY TABLE
Make and Model - National C 27(1/2)"
Static load capacity - 570 tons (Rotating load capacity 355 tons)
Size opening - 27(1/2)"

ROTARY MASTER BUSHING
Make and Model - Varco MSPC c/w casing bowls - #1,#2,
No: 1 - 13(3/8)" - 11(3/4)" No: 2 - 10(3/4)" - 9(5/8)" No: 3 - 8(5/8)" down
Type - Pin Drive with lifting slings etc.
c/w bowls No: 1 - 13(3/8)" - 11(3/4)"
No: 2 - 10(3/4)" - 9(5/8)"
No: 3 - 8(5/8)" down

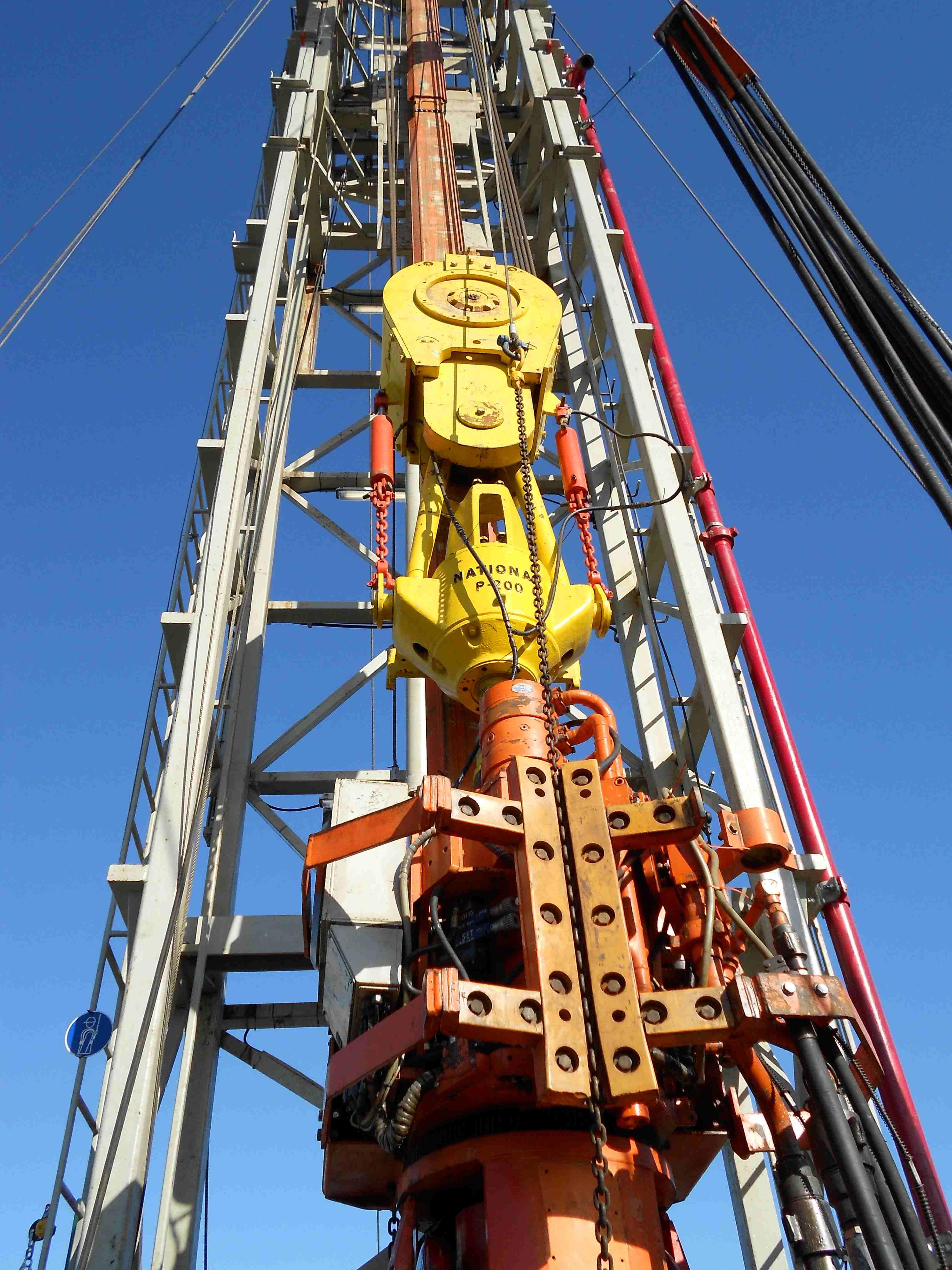

SWIVEL - National P 200 – 200 ton, 400,000 lbs static rating
TRAVELLING BLOCK - Continental Emsco RA -36 – 5H6250
250 ton – Coupled to top drive – no hook available in normal
Top Drive operation.

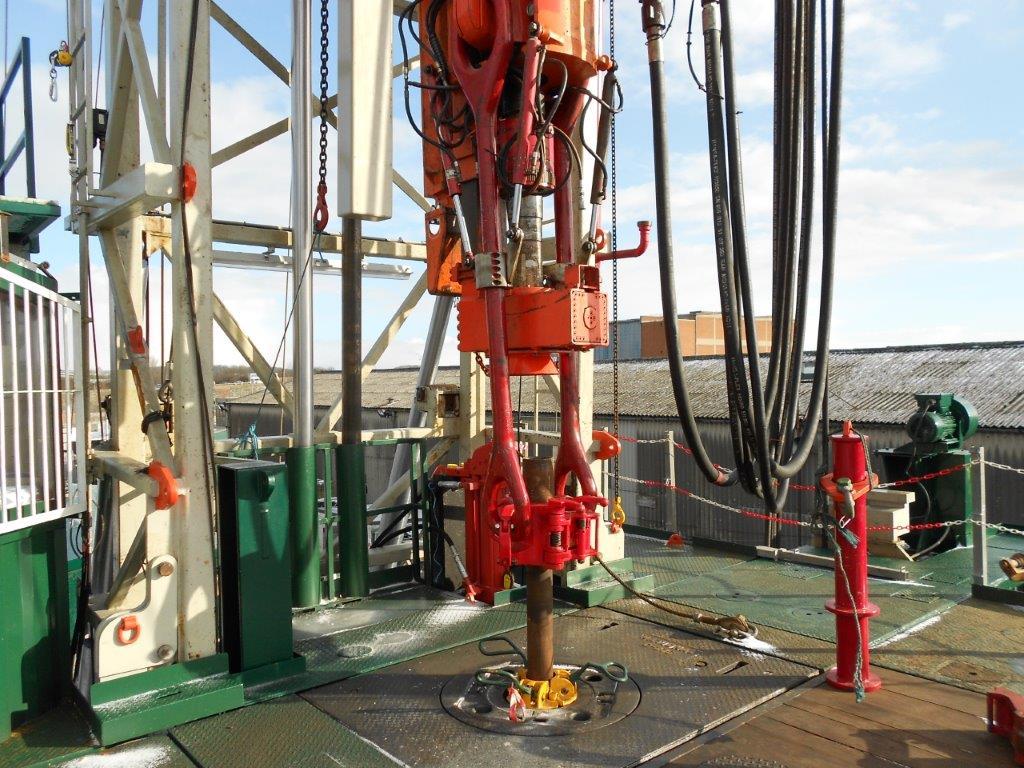

TOP DRIVE
Make and Model - Tesco TDT 350 HC Hydraulic
350 ton static rating
Pressure rating - 5,000 psi
Power - Caterpillar 3412 – Diesel Powered HPU 750 HP In soundproofed
container, c/w service loop reel.
Drilling Speed Range - 0 to 160 RPM
Drilling Torque - 30,000 ftlbs 90 RPM , 16,000 ftlbs 180 RPM. Drilling torque setting dependent on drill pipe torque settings and 1no. or 2no. Hydraulic motor operation.
Pipe Handler - Tesco Grabber Box – 37,000 ftlbs break out torque, 32,000 ftlbs make up torque.
IBOP - Integral unit.
STANDPIPE - 4" schedule 160, 8000 psi
Torque Wrench - Drilco Easy Torque unit
Hydraulic catheads in the derrick.

Contact Jeff for more details, to inspect, and or discuss pricing.
