The Upetrom F400 (often designated as the F400 DEC or F400-1800HP) is a heavy-duty, conventional land-based oil and gas drilling rig manufactured by the Romanian industrial company Upetrom-1 Mai (Ploiești).
Key Technical Specifications
• Hook Load Capacity: 400 tonnes (approx. 440 short tons / rated static capacity)
• Recommended Drilling Depth: 5,000 to 7,000 meters (approx. 16,400 to 23,000 feet) depending on drill pipe configuration (5-1/2" or 4-1/2" drill pipe).
• Power & Engines: Typically driven by diesel-electric configurations or heavy-duty multi-engine setups (such as Electroputere Craiova generators/engines).
• Brakes / Drawworks: Equipped with heavy electromagnetic brakes (such as the Upetrom FE 1400).
See the specs for the rigs in Israel , the F400 API some part has been stolen
Generators exciter, engines radiators, PCR bus bar, the other one is untouched
Both rigs drilled in 2022 , since then are stacked .
The asking price is 2.5 mil for both rigs as a package usd negotiable

1.1 Rig General Data
RIG DATA
Rig name and type Rig #17
Actual Rig location ISRAEL
Average fuel consumption in drilling (liter/day) 6,000
Year of Rig construction 2012
Loads required to move Rig and Rig site camp 80
Loads to move main camp 10
“Out of standard” loads 28
Rig nominal hook load capacity (in MT) 450
RIG STORAGE CAPABILITIES
Liquid mud (in m3) 370
Fuel (in m3) 102
Exhaust diesel-oil (in m3) 2
Drilling water + reserve water (in m3) 140
Mud sacks storing area (in sqm) 30 sqm
Pipe racks (for 9 5/8" casing) (in m) 3,000

1.2 Hoisting equipment
DRAWWORKS
Make UPETROM
Type TF-44E
Rated input power (in HP) 2,300
Hoisting drum size (in inch x inch) 31.5 x 52.17
Hoisting drum static capacity (in tons) 44
Hoisting drum grooved for line OD (in inch) 1 3/8”
Drilling line guide (type) Upetrom design roller guide
Make-up cathead (make) Upetrom
Break-out cathead (make) Upetrom
Low drum clutch (type) AVB 1250 x 300
Low drum clutch torque capacity (m-N) 250,000
High drum clutch (type) AVB 1120x300
High drum clutch torque capacity (m-N) 175,500
Brake (type) Mechanical band brake, air operated
Electromagnetic brake (make/type) Upetrom, FE-1400
Torque capacity at 50 RPM 70,000
Brakes cooling system capacity (in m3) 23
Cooling fluid Water
Crown-O-matic device (type) Upetrom
Quantity of drilling motors installed 2
Drilling motors make Electroputere Craiova
Drilling motors type MCF-850
Rated continuous power (in HP) 1,140 each
MAST
Make UPETROM
Type MU-400-46.5
Clear hight from rigfloor(in m) 46.5
Total height from ground level (in m) 56.5
Max. hookload capacity (in MT) 450
With max. number of lines 12
Racking capacity of primary size DP (in m) 5,500 (5" DP)
Racking capacity of secondary size DP (in m) 8,600 (4" DP)
CROWN BLOCK
Make UPETROM
API rated capacity (in MT) 500
Number of sheaves 7
Sheaves grooved for OD line 35mm
CASING STABBING PLATFORM (Monkeyboard)
Height adjustable to what lengths (in m) 22.6m, 23.6m, 25.6m, 26.6m above rigfloor
Type Electrical drive
SUBSTRUCTURE
Make and type UPETROM
Rig floor dimension (in m x m) 11.2 x 13.3
Rig floor set-back cap (simult. with rotary) (in t) 690
Rig floor rotary capacity (in t) 450
Rig floor set-back capacity (in t) 240
Rig floor height from ground level (in m) 10
Clear height between rotary beams and ground level (in m) 8.4
Type of BOP handling system 2 x 20 t chain air winches
Rig floor drainage system yes
Drainage discharging to: Mud flow line
TRAVELLING BLOCK
Make UPETROM
Type MCA-500
Rated capacity (in MT) 500
Number of sheaves 6
Sheaves grooved for OD line 35 mm
HOOK BLOCK
Make UPETROM
Type Integral with travelling block
Rated capacity (in MT) 500
AIR WINCHES
Quantity 2
Make UPETROM
Type TP1200 utility winches
Rated pull (in kN) 1.2
Installation site (in s) 1 on rogfloor / 1 at catwalk end
DRILLING LINE
Make CABLURI SI SARME HARSOVA
size (in mm x m) 35mm x 1,200 m
Type 6 x 19 SEAL
Breaking strength (in MT) 45
DEADLINE ANCHOR
Make NATIONAL
Type 131T
Rated static capacity (in kN) 44.5
With OD drilling line (in mm) 35
AIR NAVIGATIONAL MARKINGS
Derrick top warning light (red) Red blinking light

1.3 Rotary Equipment
ROTARY TABLE
Make UPETROM
Type MRL 275
API rated capacity (MT) 500
Max. opening 27 ½”
Driven by Electric engine
Motor (make) Electroputere Craiova
Type MCF-550
Motor power 550kW
MASTER BUSHING
Make UPETROM
Type 27.5” splitted
Insert bowl size for all casing sizes yes
SWIVEL
Make UPETROM
Type CH500
Rated static capacity (MT) 500
Working pressure (bar) 350
TOP DRIVE
Make TESCO
Type 500 ECI 900 HP
Operating power (HP) 900
Hoisting capacity (in MT) 500
Working pressure (in bar) 350
Max. continuous torque (ft-lb) 32000 @ 150 RPM
Max drilling torque (ft-lb) 36700
Max make-up torque (ft-lb) 45,000
Max brake-out torque (ft-lb) 56,000
Max. speed (RPM) 193
Jaws for OD Tool joints (inch x inch) 3” to 8 ½” OD Tool Joint
Saver sub lower connection (type) NC 50 tool joint

1.4 Mud Pumps
MUD PUMP NO: 1
Make Continental EMSCO
Type with minimum two sizes of liners Triplex pumps with 5 “; 6”; 6 ½ “; 7" liners
Rated input power (in HP) 1,600 HP
Fluid end type "L" type, simple action
Pulsation dampeners type Continental EMSCO/nytrogen filled
Reset relief valve API #7
Stroke counter (make) Martin Decker
Pump powered by motor (make) 2 x General Electric
Type GE-750
Continuous output power (in HP) 1,000 each
Supercharging pump (make) Aversa Bucuresti
Type x HP Supercharging pump AG-150 x 75 HP
MUD PUMP NO. 2
Make Continental EMSCO
Type with minimum two sizes of liners Triplex pumps with 5 “; 6”; 6 ½ “; 7" liners
Rated input power (in HP) 1,600 HP
Fluid end type "L" type, simple action
Pulsation dampeners type Continental EMSCO/nytrogen filled
Reset relief valve API #7
Stroke counter (make) Martin Decker
Pump powered by motor (make) 2 x General Electric
Type GE-750
Continuous output power (in HP) 1,000 each
Supercharging pump (make) Aversa Bucuresti
Type x HP Supercharging pump AG-150 x 75 HP
MUD PUMP NO. 3 (Optional, by request)
Make Continental EMSCO
Type with minimum two sizes of liners Triplex pumps with 5 “; 6”; 6 ½ “; 7" liners
Rated input power (in HP) 1,600 HP
Fluid end type "L" type, simple action
Pulsation dampeners type Continental EMSCO/nytrogen filled
Reset relief valve API #7
Stroke counter (make) Martin Decker
Pump powered by motor (make) 2 x General Electric
Type GE-750
Continuous output power (in HP) 1,000 each
Supercharging pump (make) Aversa Bucuresti
Type x HP Supercharging pump AG-150 x 75 HP
MUD PUMP SUCTION LINES
Mud suction lines (No.) 3
Size (in inch) 12 inch
Suction line dampeners (No.) 3
Suction line dampeners (Make) UPETROM
MUD DISCHARGE LINES (each pump have separate line)
Numbers 3
Size (in inch) 5"
Flexible line section (type) JUMPING HOSE
Working pressure (in bar) 350
STAND PIPE MANIFOLD
Connection ends (type) 5" FIG 1002
Valves (type) CAMERON
Inside diameter and W.P. (mm x bar) 101.6 mm x 350 bar
STAND PIPE
How many? 2 (double)
Length (in m) 16 m
Inside diameter and WP (in mm x bar) 99.3 mm ID x 350 bar.
ROTARY HOSE / CIRCULATING HOSE
How many? 2
Rotary hoses make/size Phoenix / 4.1/2 " ID
Length (in m) 23 m
Pressure(in bar) 350 bar

1.5 Rig Power Equipment,

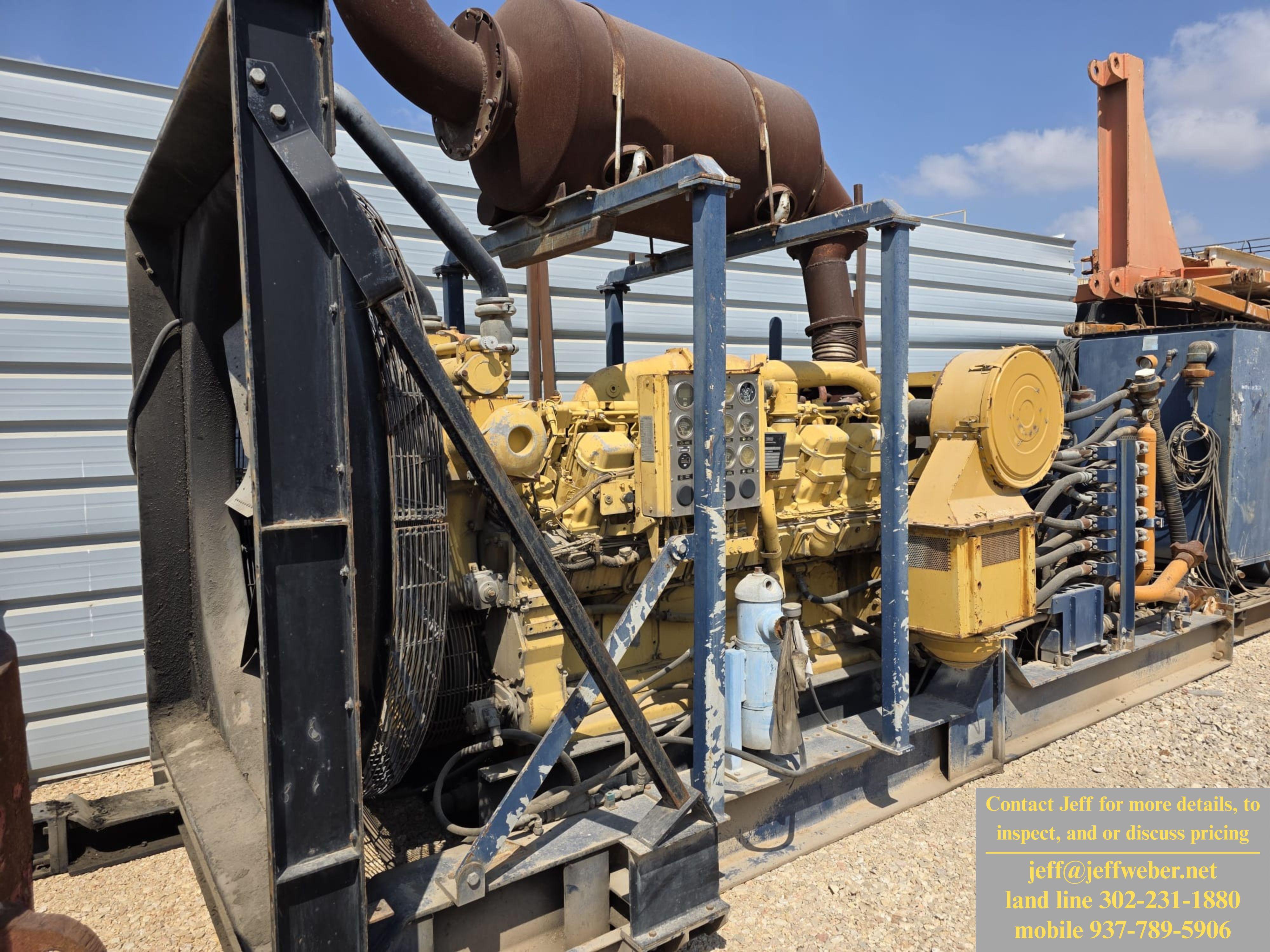

ENGINE GENERATOR SETS, Number installed 3
Diesel engines make Caterpillar
Diesel engine type 3512B DITA
Maximum continuous power (in HP) 1757
@ rotation speed of (in RPM) 1500 RPM
AC GENERATORS 3
Make Caterpillar
Type SR4B
Maximum continuous power (in KVA) 1500 KVA
Power factor 0.8
Output (in Volts) 660 Volts
Frequency (in Hertz) 50 Hertz
@ rotation speed of (in RPM) 1500 RPM
SCR SYSTEM
Make ICPE-ACTEL
SCR Type 7 bays
SCR No. 1
EMERGENCY GENERATOR(S)
Make Caterpillar
Number of units 1
Type C15 ACERT
Max. continuous power 555 kVA
Output voltage (in Volts) 400
Frequency 50
Users Rig lightening, automatic driller
AIR COMPRESSOR(S)
Make ALMIG
Number 2
Type(s) Belt 38-10
Max. flow rate (in m3/min) 6.5
Air pressure service 10 bar
AIR SPARE TANKS
Location DS, at ground level
Volume 8 m³

1.6 Mud, Cement and Water System - Bulk Storage

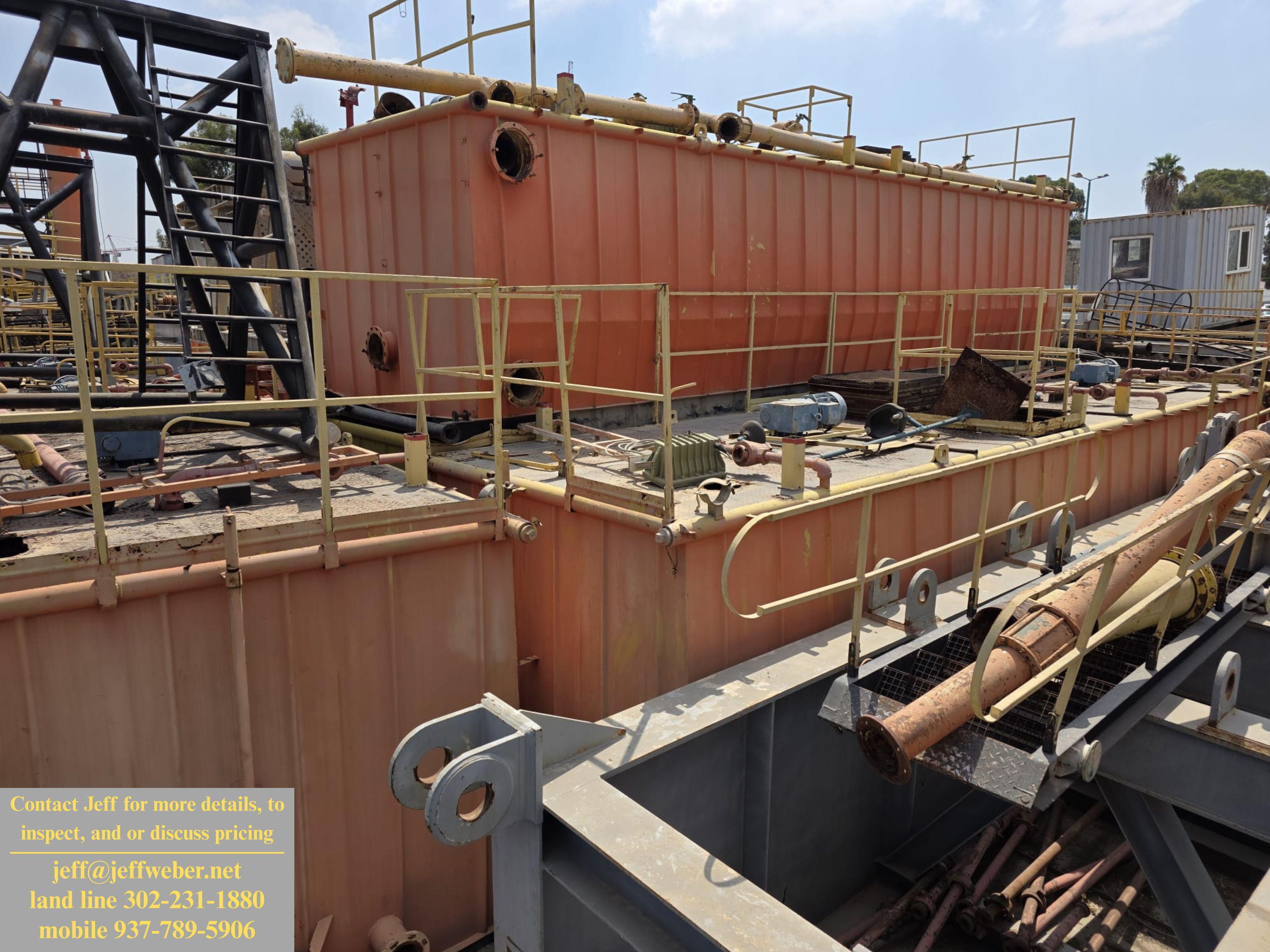

MUD TANKS GENERAL
Total mud tanks installed (No.) 6
Total mud system capacity (in m3) 370
Total pumpable volume (in m3) 340
Mud tank No. 1 - capacity (m3) 30 / 4
Used for: Shakers tank / Trip tank
Mud tank No. 2 - capacity (m3) 60
Used for: Cleaning tank
Electrical agitators (No.) 3
Electrical agitators (make and type) NORD Germany / Horizontal
Powered by electric motor (in HP) 10
Bottom guns (No.) 3
Size (in inch) 3
Mud tank No. 3 - capacity (m3) 70
Used for: Intermediate tank
Electrical agitators (No.) 3
Electrical agitators (make and type) NORD Germany / Horizontal
Powered by electric motor (in HP) 10
Bottom guns (No.) 3
Size (in inch) 3
Mud tank No. 4 - capacity (m3) 70
Used for: Suction tank
Electrical agitators (No.) 3
Electrical agitators (make and type) NORD Germany / Horizontal
Powered by electric motor (in HP) 10
Bottom guns (No.) 3
Size (in inch) 3
Mud tank No. 5 - capacity (m3) 70
Used for: Suction tank
Electrical agitators (No.) 3
Electrical agitators (make and type) NORD Germany / Horizontal
Powered by electric motor (in HP) 10
Bottom guns (No.) 3
Size (in inch) 3
Mud tank No. 6 – capacity (m3) 70
Used for: Reserve mud tank
Electrical agitators (No.) 4
Electrical agitators (make and type) NORD Germany / Horizontal
Powered by electric motor (HP) 10
Bottom guns (No.) 2
Size (inch) 3

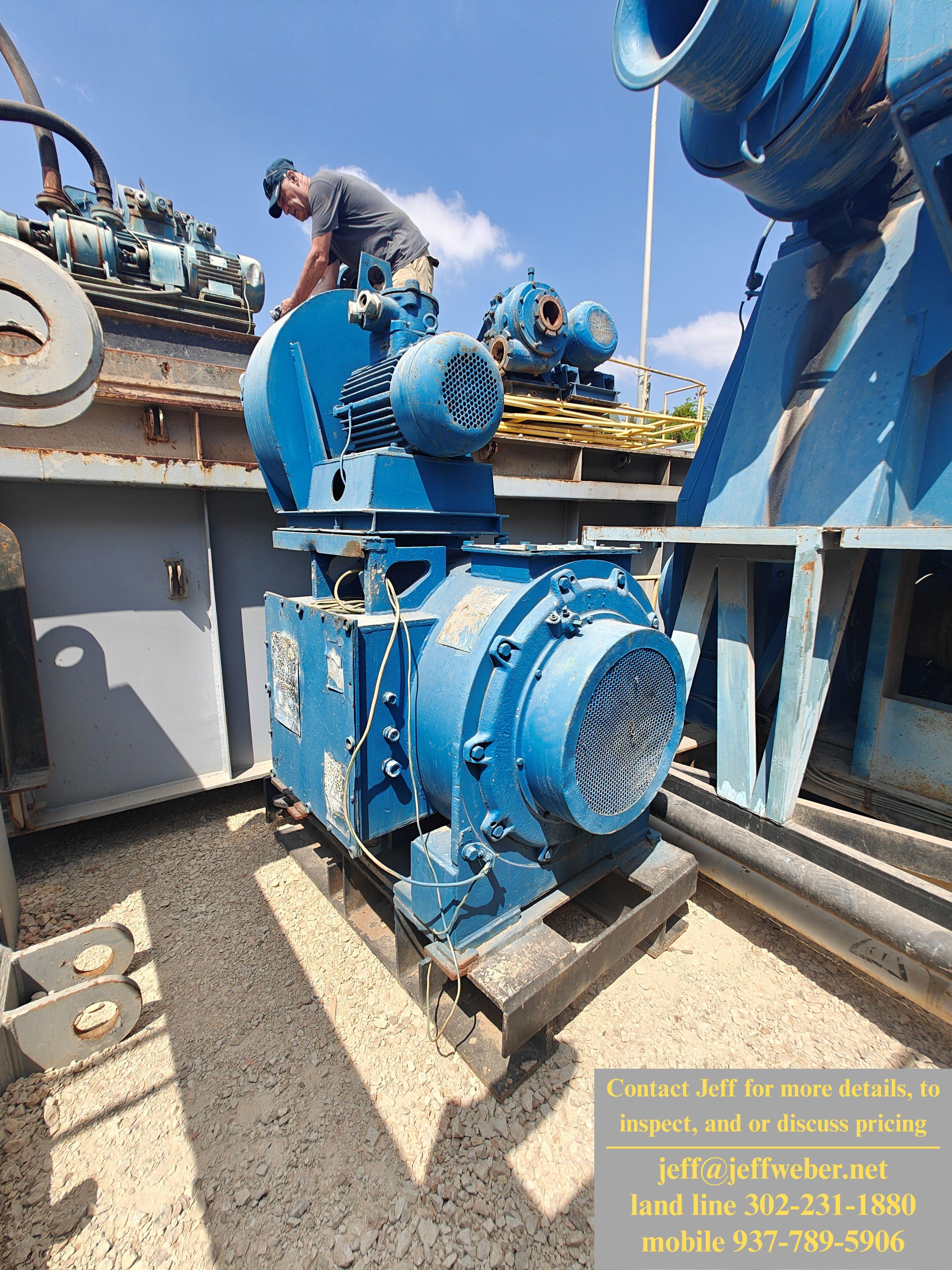

MIXING PUMPS (No) 2
Make UPSS Botosani
Type AG-150
Driven by motor (type) electric
Motor (in HP) 120
HOPPERS
Mud hoppers (No.) 2 (1 fitted with a big bag feed bin)
CHEMICAL MIXING TANK
Capacity (m3) 1.5
With electrical mixer 1 electrical agitator

1.7 Solids Control and Mud Related Well Control Equipment
SHALE SHAKER, incl. ditch magnet
Numbers of Shakers 2
Make MI Swaco
Type Mongoose PT
Flowrate (m³/hour) 135 (600 gpm)
DESANDER
Make MI Swaco
Number of cones and size (in No. x inch) 2x10”
Flowrate 4000 l
Centrifugal pump (make) Aversa Bucuresti
Type AG150 / 75
Driven by motor (in HP) 75
DESILTER
Make MI Swaco
Number of cones & size (in No. x inch) 16X 4”
Flowrate 3800 l
Centrifugal pump (make) Aversa Bucuresti
Type AG150 / 75
Driven by motor (in type x HP) 75
DEGASSER (Vacuum)
Mud rate (l/s) 53
Gas rate (m³/hour) 1.6
Mud electric pump max. output (m³/hour) 180-200
Mud electric pump power (HP) 40
Vacuum pump max. output (m³/hour) 100
Vacuum pump power (HP) 5.5

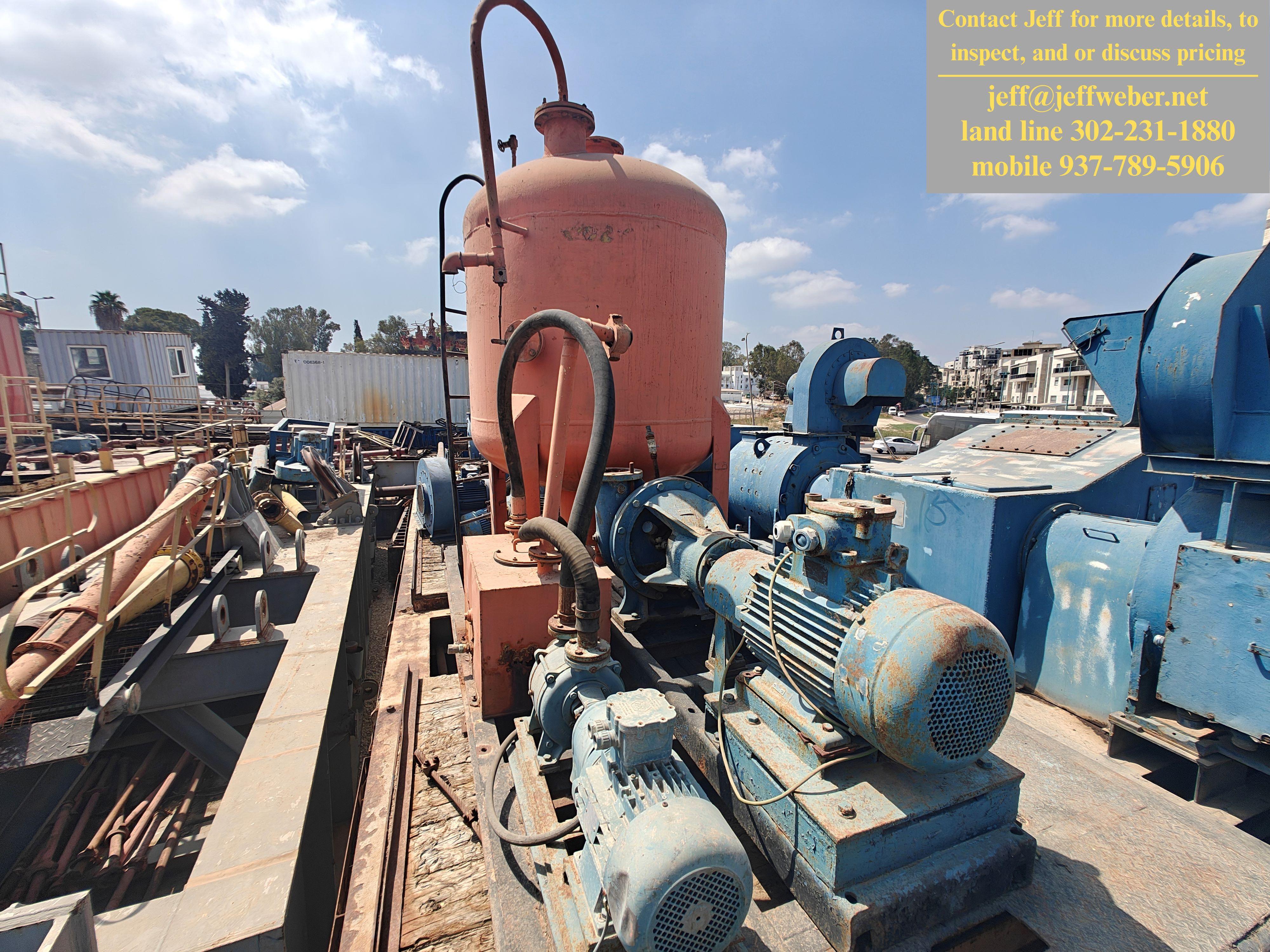

POOR BOY Degasser (atmospheric)
Size - OD, height, mud seal height 800mm OD/7,800mm/3500mm
Treating capacity (l/s) 98
Feed inlet size 4"
Discharge size 8"
Ventline size 8"
Mud leg hight (m) 3.3
Trip tank
Level indicator visible from driller's site Yes
Feeding pump (type) LCPU-3x2-12,5

1.8 BOP and Related Equipment
BOP: Description of size, type, pressure rating and configuration Annular 13 5/8 x 350 ; double rams 13 5/8 x 700 and single 13 5/8 x 700
Type UZTEL
Size (in inch) 13 5/8
Working pressure (in bar) 700
Single or Double Single and double
H2S service Yes
Top connection (type) Studded
Top connection size (inch x psi) 13 5/8 x 5M
Bottom connection (type) Flanged
Bottom connection (inch x psi) 13 5/8 x 10M
Outlets quantity (No.) six
Outlets (type) Studded
Outlets size (in inch x psi) 2 1/16 x 10M
Quantity of sets available (No.) as necessary
Pipe rams available (in inch) 2 7/8; 3 1/2; 4; 4 1/2; 5; 5 1/2; 7; 9 5/8
BAG TYPE PREVENTER (MAKE) UZTEL
Type UZ 3
Size (in inch) 13 5/8
Working pressure (in bar) 350 bar
H2S service Yes
Temperature rating/material class P/BB
Top connection (type) Studded
Top connection size (inch x psi) 13 5/8 x 5M
Bottom connection (type) Flanged
Bottom connection size (in inch x psi) 13 5/8 x 10M
RAM TYPE PREVENTER (MAKE) UZTEL
Type UZ 01
Size (in inch) 13 5/8
Working pressure (in bar) 700 bar
Single or double Single
H2S service Yes
Temperature rating/material class P/BB
Top connection (type) Studded
Top connection size (in inch x psi) 13 5/8 x 10 M
Bottom connection (type) Studded
Bottom connection (in inch x psi) 13 5/8 x 10M
Outlets quantity (No.) two
Outlets (type) Studded
Outlets size (in inch x psi) 2 1/16 x 10M
Quantity of sets available (No.) As necessary
BOP rams: description of sizes, ratings, and functions Blind ; 2 7/8 ; 3 1/2 ; 4 ; 4 1/2 ; 5 ; 5 1/2 7 ; 13 5/8
Ability to provide high temperature ram packing suitable with Oil Base Mud for BOP equipment, standpipe and choke manifold? Yes
Type UZ 2
Size (in inch) 13 5/8
Working pressure (in bar) 700 bar
Single or double Double
H2S service Yes
Temperature rating/material class P/BB
Top connection (type) Studded
Top connection size (in inch x psi) 13 5/8 x 10M
Bottom connection (type) Studded
Bottom connection (in inch x psi) 13 5/8 x 10M
Outlets quantity (No.) Four
Outlets (type) Studded
Outlets size (in inch x psi) 2 1/16 x 10M
Quantity of sets available (No.) As necessary
BOP rams: description of sizes, ratings, and functions Blind ; 2 7/8 ; 3 1/2 ; 4 ; 4 1/2 ; 5 ; 5 1/2 7 ; 13 5/8
Ability to provide high temperature ram packing suitable with Oil Base Mud for BOP equipment, standpipe and choke manifold? Yes
13 5/8" NOMINAL DRILLING SPOOL
Quantity (No.) 2
Top connection (type) Flanged
Top connection size (in inch x psi) 13 5/8 x 10M
Bottom connection (type) Flanged
Bottom connection size (in inch x psi) 13 5/8 x 10M
Outlets quantity (No.) 2
Outlets (size) (in inch x psi) 4 1/16 x 10M
H2S Service Yes
HYDRAULIC CHOKE VALVES
Make / Quantity (No.) HM810
Type Uztel
H2S Service Yes
Connection size (in inch x psi) 4 1/16x 10M
Connection (type) Flanged
HYDRAULIC KILL VALVES
Make / Quantity (No.) HM810
Type Uztel
H2S Service Yes
Connection size (in inch x psi) 2 1/16x 10M
Connection (type) Flanged
MANUAL VALVES
Choke - Make/No. 813 FF
H2S Service Yes
Connection size (in inch x psi) 2 1/16 x 10M
Connection (type) Flanged
Kill - Make 813 FF
Quantity 1
Type Flanged
Connection size (in inch x psi) 2 1/16 x 10M
Connection type Flanged
Check valves (make) 919 FF
No. 1
Type Flanged
H2S Service Yes
Connection size (in inch x psi) 2 1/16 x 10M
Connection (type) Flanged
ACCUMULATOR UNIT (make) UZTEL
Size, must meet API standard closing times CH6U 3000 - MD10
Installation site Maximum 100 feet to well bore
Capacity of reservoir (in gal) 264.2 gal
Quantity of accumulators 10
Capacity of each (in gal) 21.13 gal
Total capacity (in gal) 211.3 gal
Accumulator work pressure (in bar) 210
Closing time BOP 1 (in sec) 17 s
Closing time BOP 2 (in sec) 21 s
ACCUMULATOR ELECTRIC DRIVEN PUMPS
No. 1
Model (type) Triplex
Flow rate of each (in gpm) 10.57 gal/min
At max. work pressure (in bar) 210
Motor power (in HP) 30
Independent power sources (No.) 2
ACCUMULATOR AIR DRIVEN PUMPS
No. 2
Model (type) Tseries
Flow rate of each variable
At max. working pressure 210
Independent power sources (No.) 1
ALARMS
Low accumulator pressure (type) Yes
Low air pressure (type) Yes
Low fluid level (type) Yes
HYDRAULIC CONTROL MANIFOLD
Model (type) Hydro - pneumatic
Valves for Num. functions (No.) 4
No. of gauges 2
TOOLPUSHER'S CONTROL PANEL (remote)
Model (type) UZTEL
HOSE LINES F/ ACCUM. TO BOP - STACK
Make - type Uztel
Fire resistant Yes
Quantity of hose lines 60
Inside diameter 1"
Control panels (No.) 1
Control panels installation site On the rig floor
Kill lines from BOP to Rig floor/cem. Unit
Quantity (No.) 1
Type, Check valve Coflexhosses ; Flanged
Inside diameter x W.P. (in inch x psi) 2" x 10M
H2S service Yes
Choke lines from BOP to choke manifold
Quantity (No.) 1
Type Coflexhosses
Nominal diameter x W.P. (in inch x psi) 4" x 10M
H2S service Yes
Reverse circ. line from Rig floor to choke manifold *with bypass valve to shale shaker
Quantity (No.) As necessary
Type Metalic
Inside diameter x W.P. (in inch x psi), H2S services
CHOKE MANIFOLD
All connection ends (type) Flanged
H2S service Yes
Nominal size (in inch x psi) 2 1/16 x 3 1/16 x 10M
Positive choke valves (No.) 1
Size (in inch x psi) 3 1/16 x 10M
Manual adjustable chokes (No.)
Make Uztel
Size (in inch x psi) 3 1/16 x 10M
Power choke (No.1)
Make Uztel
Size (in inch x psi) 3 1/16x 10M
Hydraulic valves (No.)
Make and type Uztel
Size (in inch x psi) 3 1/16 x 10M
Remote control panel for power choke
Type Axon
Installation site On the rig floor
Pressure gauges (No.) 4
Type AISI 316
Mud pump stroke counters (No.) 3
Type Electronic
Mud pump stroke totalizers Yes
Type Electronic
Power choke opening indicator (type) Yes
Remote control panel hydraulic valves In accumulator unit
Type Uztel
Installation site
HORIZONTAL FLARE LINE
No. 1
O.D. 6"
Complete with valve Yes
Flare distance from center of the well Max 150m
Auto flare ignition system No
Chiksan joints (No.)
Size x working pressure (in inch x psi) 4" x 10M ; 2" x 10M
Length of each joint (m) 3 m - 21 pcs ; 2.5 m - 2pcs ; 2m - 10pcs ; 1.5m - 3pcs ; 1m - 3pcs ; 0.5m - 4pcs ; 0.25m ; 2pcs
CUP TESTERS (No) Yes
Make and type Cameron type F
For O.D. casing (in inch) 13 3/8 ; 10 3/4 ; 9 5/8 ; 7
For casing weight (in lb/ft) As necessary
Cross overs to test BOP casing pipe rams
Quantity (No.) As necessary
Top connection (Type) Flanged
Bottom connection (Type) Flanged
For O.D. casing (in inch) As necessary
Cross overs to test lower/upper Kelly cock
Quantity (No.) 1 for each size of Kelly
Connection (Type) 6 5/8 Reg ; 4 1/2 IF ; 4" XTF or 4" VX
PORTABLE HYDRAULIC TESTING UNIT
No. 1
Make Haskel
Type ASF 100
Rated pressure (in bar) 1050
Recorder (type) Chart
BOP HOISTING / SKIDDING SYSTEM
Make J.D. Neuhaus
Type 20 TI, air powered
Rated capacity (in kN) 2pcs x 200 kN each

1.9 Drilling Instrumentation
DRILLING CONSOLE
Make Martin Decker
Type AWE 6 K
WEIGHT INDICATOR
Make Martin Decker
Type E
Dead-line load 0-480t
MUD PUMP PRESSURE GAUGES
Make Martin Decker
Type GM6A
Pressure range (in bar) 0- 400 bar
ROTARY TORQUE INDICATOR
Make TESCO
Reading range (in m.kN) 0-10,000
ROTARY SPEED TACHOMETER
Make Martin Decker
Type Electric
Reading range (in RPM) 0-250rpm
TONG TORQUE INDICATOR
Make Martin Decker
Type H6DP
reading range (in lb) 0 - 60,000 lbs
MUD PUMP STROKE INDICATOR
Quantity (No.) 2
Make TURK
Type Electric
DRILL. PARAMETER RECORDER
Make Martin Decker
Model (type) 8 bays
Parameter recorded- WOB yes
Parameter recorded-ROP yes
Parameter recorded-Rotary torque yes
Parameter recorded-RPM Yes
Parameter recorded-SPM 1/SPM 2/(SPM 3) Yes
Parameter recorded-Pump pressure Yes
MUD TESTING EQUIPMENT
Make Baroid
Type Weighting / Marsh funnel
1.10 Well Site Utilities - Loading and Transportation

WATER PUMPS
No. 2
Make UPSS
Type PoL 65
Driven by (type) Electric motor
Rated power (in HP) 7.5
EJECTOR IN THE CELLAR
Liquid mud from cellar yes
Type Upetrom
Water tanks yes
Number of tanks 2
Capacity of each (in m3) 70
Total capacity (in m3) 140
FUEL TANKS
Number of tanks 4
Capacity (in m3) 2 x 28 m³
Capacity (in m3) 2 x 19 m³ + 4 m³ day tank
Total capacity (in m3) 102
EXHAUSTED OIL TANK
Number of tanks 1
Capacity of each (in m3) 2
Total capacity 2

Contact Jeff for more details, to inspect, and or discuss pricing.
jeff@jeffweber.net
land line 302-231-1880
USA mobile-wahts ap 937-789-5906
