Technical Specifications - Turnkey Specialists Inc. (TSI) 14mm scfd dehy skid:
• Performance Target: Reduces water content down to standard pipeline quality (typically < 7 lbs of H₂O/MMSCF or down to 3 lbs/MMSCF if specified).
• Contactor Column Size: 32-inch outer diameter (OD) x27’.
• Reboiler Thermal Duty: rated at 0.75 MMBtu/hr.

Two-Stage Process Flow - Turnkey Specialists Inc. (TSI) 14mm scfd dehy skid:
Absorption Loop
• Inlet Scrubber:
• Contactor
• Dry Gas Exit
Regeneration / Stripping Loop
• Flash Separator.
• Filters

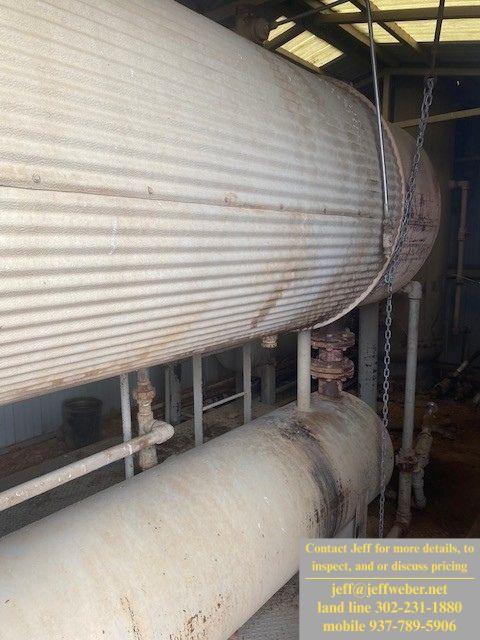

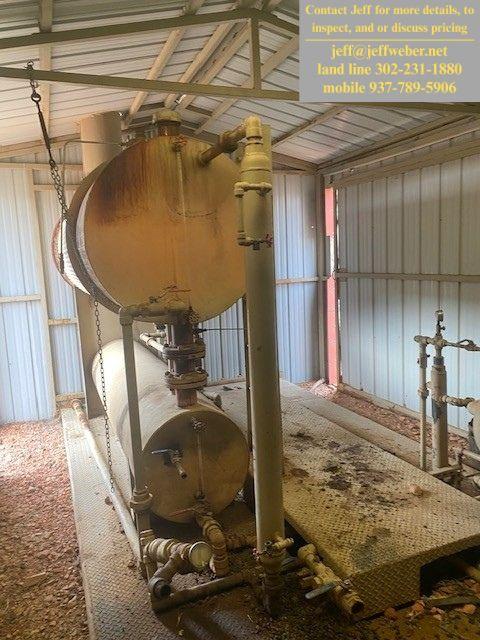

• Reboiler & Still Column
• Recirculation

Key Mechanical Equipment - Turnkey Specialists Inc. (TSI) 14mm scfd dehy skid:

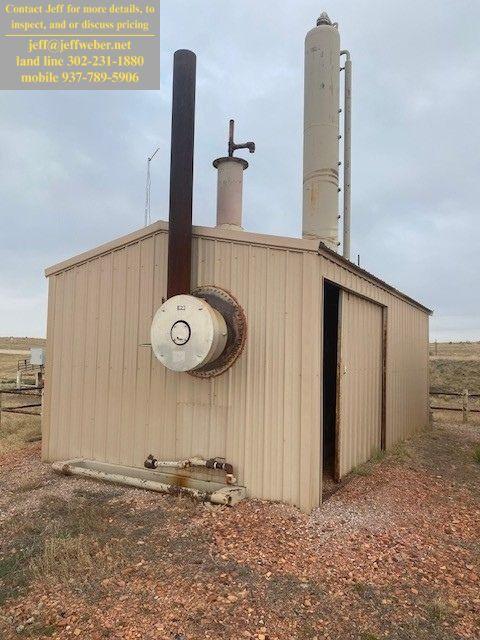

• Modular Skid
• Glycol Circulation Pump
• Burner Management System (BMS)
• Control Panel: Equips the site operator with a local PLC interface for digital control of flow rates, pressure variations, and automated valve sequences.

Contact Jeff for more details, to inspect, and or discuss pricing.
