Jeff Weber

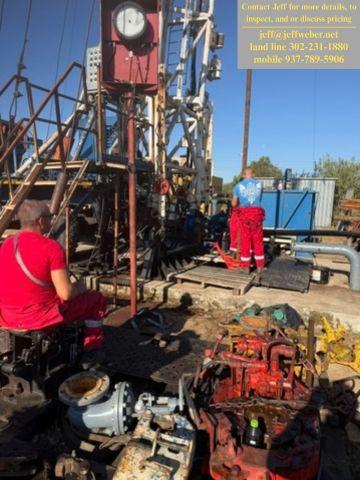

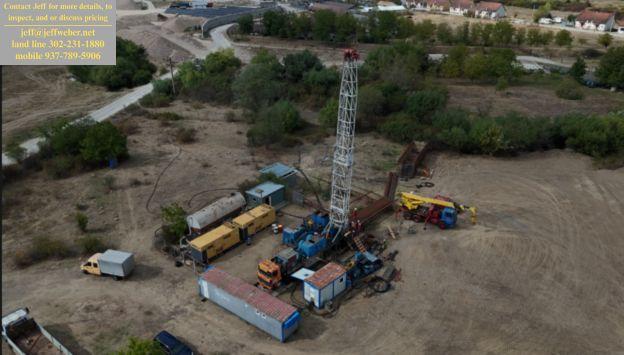

I am selling an UPET TW80 mobile workover rig. The TW80 available for purchase isa self-propelled, truck-mounted mobile workover rig. designed for servicing, repairing, and recompleting vertical or inclined oil, gas, and geothermal wells.

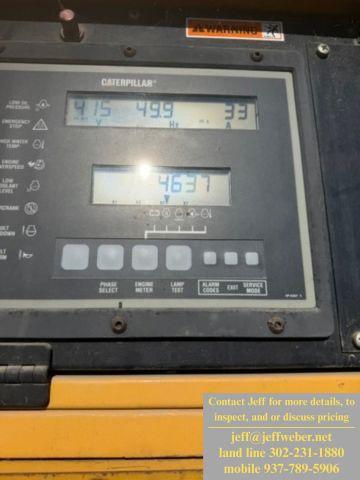

TW80 generator hours 4637

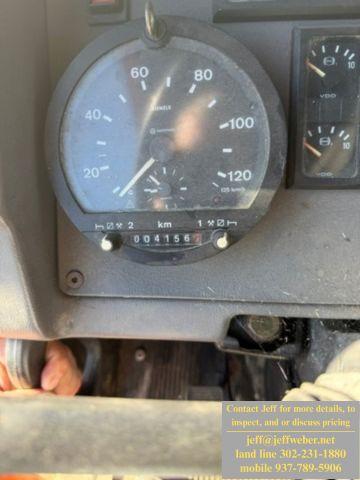

Truck km 4100

General Technical Specifications
• Maximum Static Hook Load: 80 metric tons (80 tf / approx. 785 kN / 88 short tons)
• Maneuvering System / Travelling Block: 8 lines (number of crane/hoisting ropes.
• Hoisting Cable Diameter: 26 mm
• Power Rating: ~350 HP to 440 HP (depending on engine configuration, such as a Caterpillar C13 ACERT diesel engine)
• Drawworks Transmission: Hydromechanical transmission (e.g., Caterpillar CX31-P600) with multiple speed gears (typically 5 forward + 1 reverse on the drawworks)
• Chassis Type: Heavy-duty truck chassis
• Recommended Working Depths
• For Recompletions:
o 3 ½″ Pipes (23.6 kg/m): Up to 3,000 meters
o 2 ⅞″ Pipes (15.6 kg/m): Up to 4,300 meters
• For Standard Workovers:
o 3 ½″ Tubing (18.6 kg/m): Up to 4,000 meters
o 2 ⅞″ Tubing (13.72 kg/m): Up to 5,800 meters

Contact Jeff for more details, to inspect, and or discuss pricing.
jeff@jeffweber.net
land line 302-231-1880
USA mobile-wahts ap 937-789-5906
